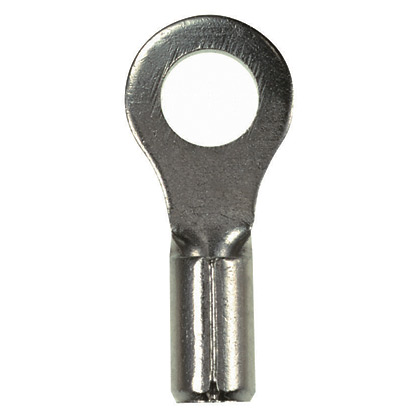

Panduit P14-10RHT6-C Ring Terminal

Manufacturer: Panduit | Catalog # P14-10RHT6-C | Codale Part # 3586727
$124.62/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
High Temperature Ring Terminal, 16 . 14 AWG, #10 stud size, non-insulated, standard package.

Technical Information

Barrel Length
0.28 in
Barrel Type
Brazed Seam
Color Coding
Silver
Conductor Size
14 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
343 degrees C
Min Operating Temperature
343 degrees C
Size
#10
Tc Connection
Standard
Temperature Rating
650 F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Ring Terminal
Voltage
2,000 Volt
Wire Size
14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983805402
Color
NA
Finish
Tin Plated
Product UPC
07498380540
UNSPSC
39121409
Weight
0.2300 lb

Dimensions

Outer Diameter
0.31 in
Overall Length
0.71 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164
