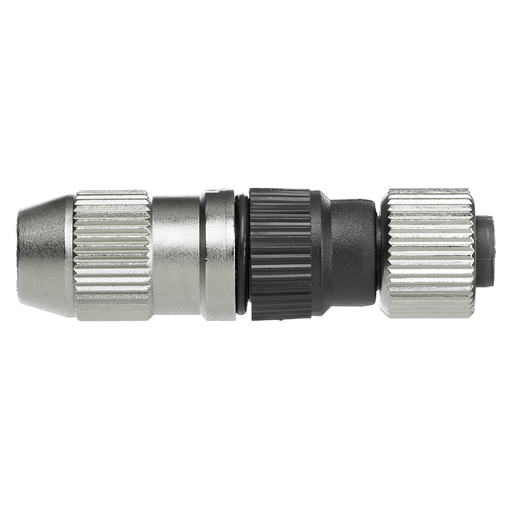

Hubbell MCMS14IDC MCQK, FeMale Straight Plug, MET, 4P, IDC

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # MCMS14IDC | Codale Part # 3587207
$52.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Field Attachable Micro-Quick Control Connectors, Female Straight, 4 Wire, Insulation Displacement

Technical Information

Amperage
3 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Type
Copper
Contact Material
Copper Alloy
Insulation Material
Polyester Elastomer
Number of Conductors
4-Pole
Number of Poles
4 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E192071,UL 2238,UL50E
Temperature Rating
-20 To 105 degrees C
Type
Female Straight Plug

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Micro-Quick Signal and Control Devices

General Product Info

12-Digit UPC
783585226699
Color
Black
Product UPC
78358522669
Weight
0.05 lb

Dimensions

Diameter
0.59 Inch
Height
5-1/2 Inch
Length
7 Inch
Width
0.5 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Features
  • Strain relief bushing protects terminations
  • Wire Guide for virtually toolless termination
  • Insulation displacement contacts are made of Copper Alloy
  • Single Key, Insulation Displacement
