HWDK HBL60W48 WATERTIGHT RECEP ASSY

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL60W48 | Codale Part # 3587425
$85.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

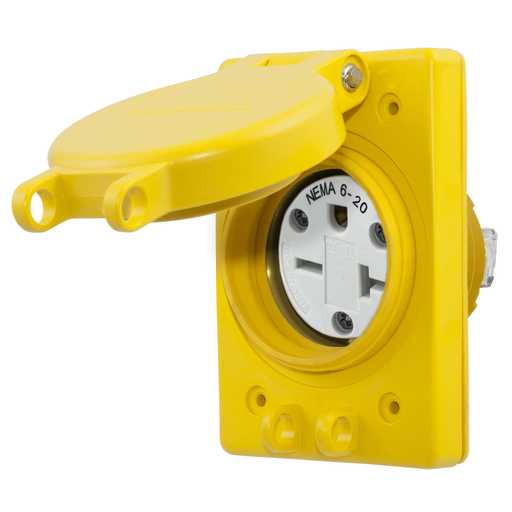

Watertight Series, Straight BladeReceptacle, 20A 250V, 2-Pole 3-Wire Grounding, NEMA 6-20R, Yellow

Technical Information

Amperage
20 Amp
Applications
Power Connection
Body Material
PBT
Contact Material
Nickel Plated Brass
Current
20 Amp
NEMA
6-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized Product
Tc Connection
Terminal Screws
Type
Receptacle
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Watertight Devices

General Product Info

12-Digit UPC
783585456584
Color
Yellow
Product Series
Watertight Devices
Product UPC
78358545658
Weight
0.3000 lb

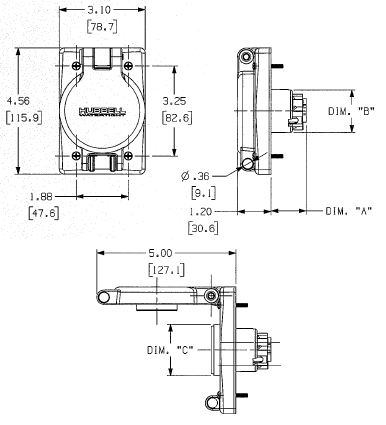

Dimensions

Height
3.418 Inch
Length
5.168 Inch
Width
3.168 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
