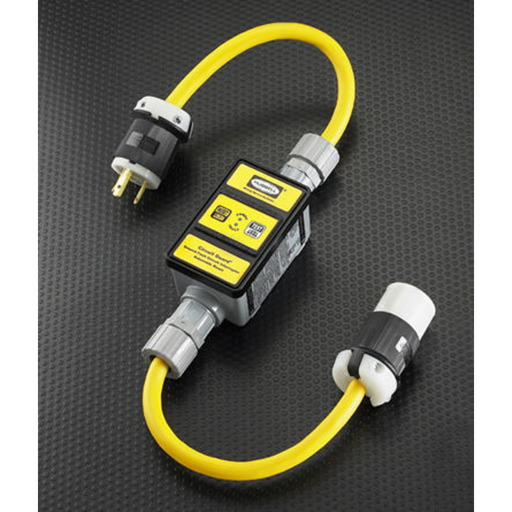

Hubbell GFP1311 PORT GFCI, 30A 120V, AUTO, 2'

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFP1311 | Codale Part # 3590432
$641.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Power Protection Products, GFCI High Amperage Portables, Industrial/Commercial, Auto Set, 30A 120V AC, 2' Cord Length, 4-6 mA Trip Level, Yellow

Technical Information

Amperage
30 Amp
Applications
Line Cord Only No Devices
Conductor Material
Copper
Conductor Size
10 AWG
Conductor Type
Copper
Cord Length
2 ft
Current
30 Amp
Frequency
60 Hz
Insulation Material
Elastomer
Number of Conductors
3
Operating Temperature
-30 To 150 degrees F
Standard
UL
Style
Automatic Set
Temperature Rating
-35 degrees C to 66 degrees C
Type
Portable, Straight Blade, Automatic, Industrial Grade, Extra Heavy-Duty
Voltage
120 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit Guard®

General Product Info

12-Digit UPC
783585005621
Color
Yellow
Construction
Fabricated
Jacket Material
PVC
Product Series
Extra Heavy Duty
Product UPC
78358500562
Weight
2.15 lb

Dimensions

Height
3 Inch
Length
2 Foot
Outside Diameter
0.335 in
Width
10.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • Electromagnetic Latching Mechanism
  • Trips if ground and neutral touch at load side
  • Red blinking light plus optional audible alarm
  • Open neutral protection Trips upon loss of neutral
  • Auto Set
