Hubbell CR20OW 125 Volt 20 Amp NEMA 5-20R Office White Commercial Grade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CR20OW | Codale Part # 3590481
$2.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Office White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Smooth Face
Tc Connection
Back & Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585900148
Color
Office White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358590014
Weight
0.15 lb

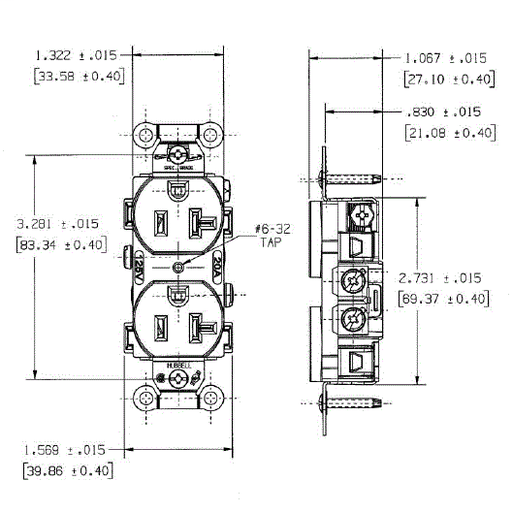

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
0.83 in

Certifications and Compliance

Country of Origin
China
Features
  • Easy access split circuit tab
  • Fork terminal capable
  • Smooth face
  • Triple wipe contacts
  • Self Grounding
