PAN UTP28CH2BU Cat 5e 28 AWG UTP Co

Manufacturer: PANDUIT | Catalog # UTP28CH2BU | Codale Part # 3592345
$25.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

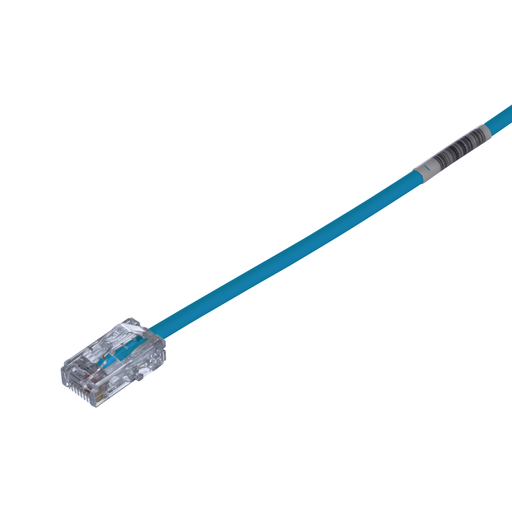

The TX5e™ Cat 5e UTP Patch Cord is a 2-Foot, 0.150-inch (3.8mm) diameter, Blue cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug™ modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Voice/data systems (4) Voice over Internet Protocol (VoIP)
Boot Color
No Boot
Cable Type
24 AWG U/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Stranded
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 5e
Plug Type
Modular Plug
Temperature Rating
167 degrees F
Type
Category 6A
Wire Size
28 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983417766
Color
Olive, Orange, Royal Blue and Yellow
Jacket Material
LSZH Material
Product UPC
07498341776
UNSPSC
43223303
Weight
0.0700 lb

Dimensions

Length
2 Inch
Outer Diameter
0.15 in
Outside Diameter
3.8 mm
Overall Length
2 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
