HWDK HBL65W34 WATERTIGHT RECEP ASSY

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL65W34 | Codale Part # 3592989
$81.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

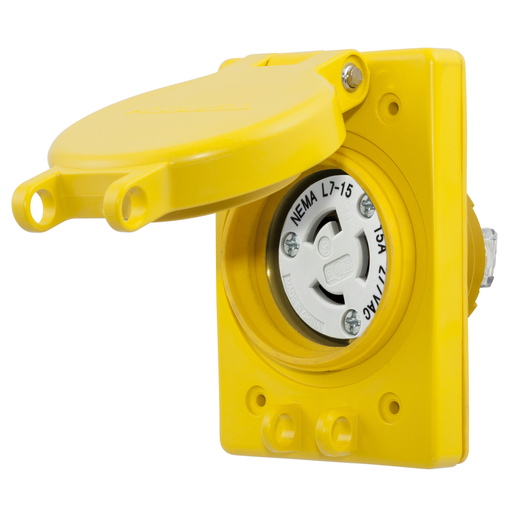

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 15A, 277VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-15R, Yellow.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Body Material
PBT
Conductor Size
18-10 AWG
Contact Material
Nickel Plated Brass
Current
15 Amp
Material
Elastomer
NEMA

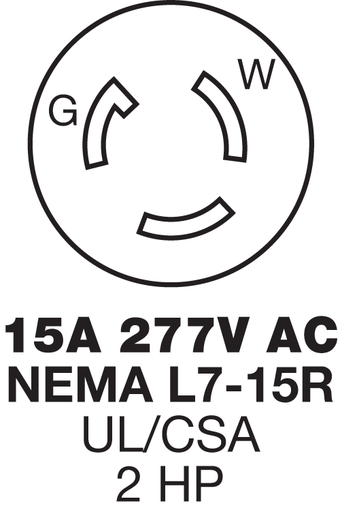

L7-15R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

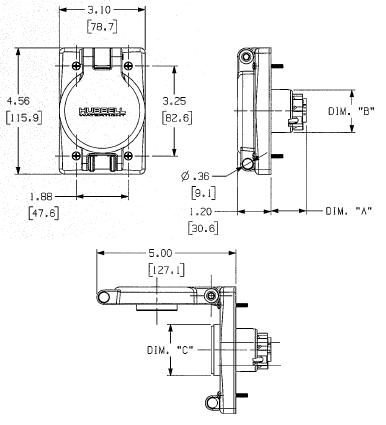

4.56 in x 3.10 in x 2.66 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Type
Receptacle
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585456607
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358545660
Weight
0.3000 lb

Dimensions

Height
2.66 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
