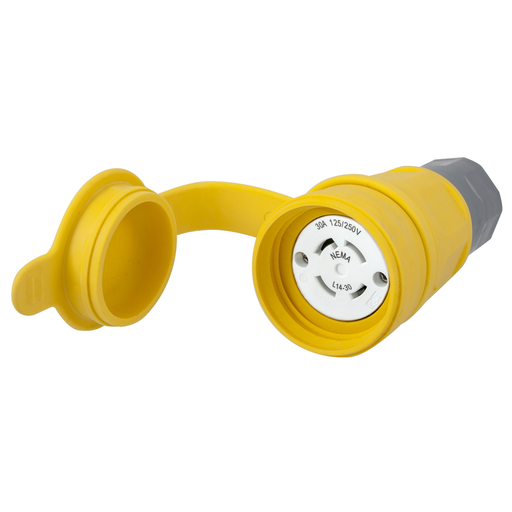

Hubbell HBL29W74 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-30R Yellow Locking Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL29W74 | Codale Part # 3593067
$227.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Connector, 30A, 125/250V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L14-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Connection Type
Screw
Contact Material
Nickel Plated Brass
Current
30 Amp
Material
Thermoplastic
NEMA

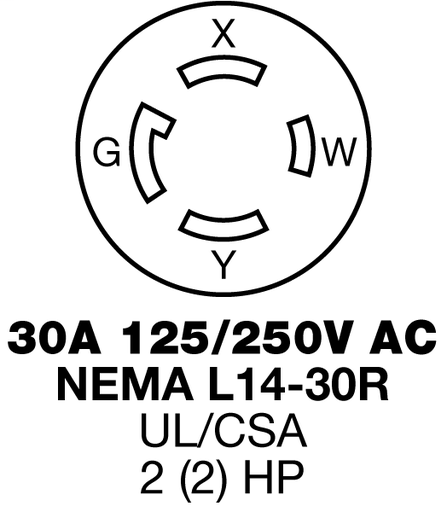

L14-30R
Number of Conductors
4
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

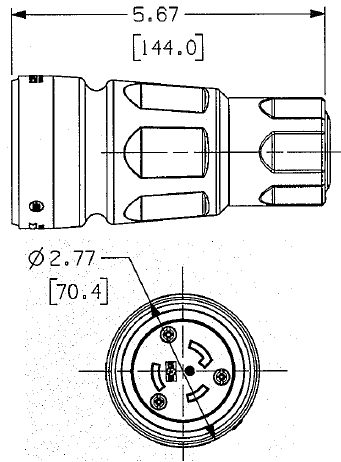

2.77 in x 2.77 in x 5.67 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 60 degrees C Continuous
Type
Industrial Grade
Voltage
125/250 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131870
Color
Yellow
Environmental Conditions
Water Tight
Product UPC
78358513187
Weight
0.2500 lb

Dimensions

Diameter
2.77 Inch
Height
5.67 Inch
Length
5.67 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
