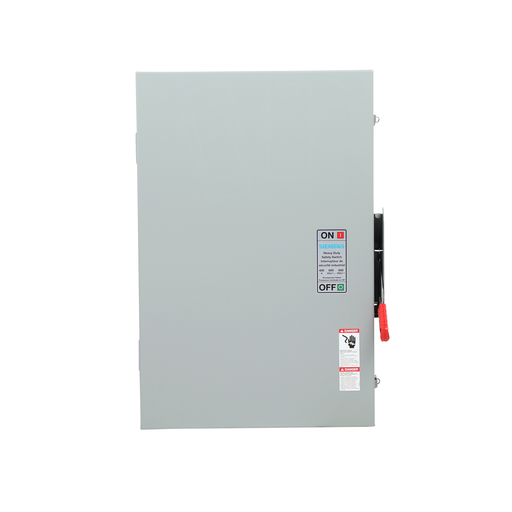

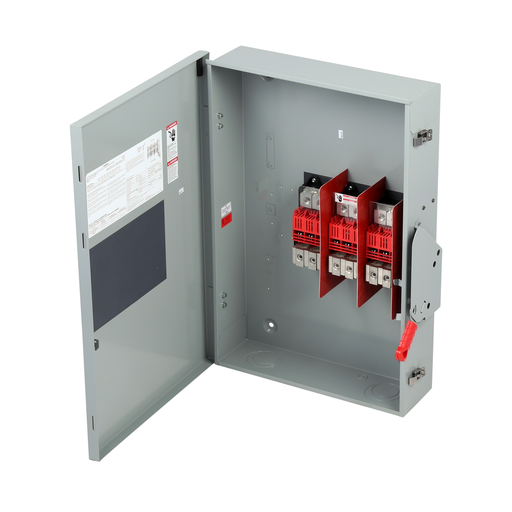

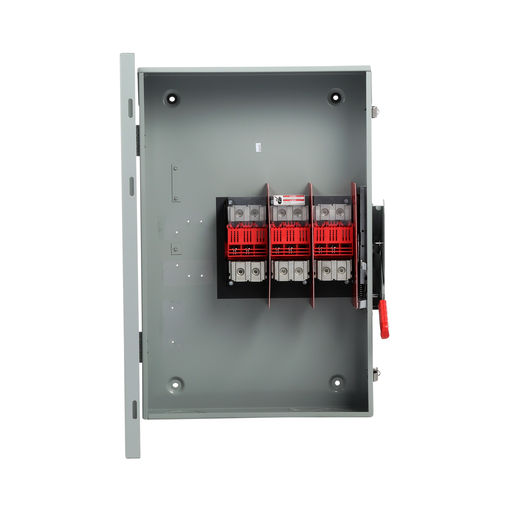

Product image for Siemens HNF365RA 600 VAC 400 Amp 3-Pole 3-Wire NEMA 3R Heavy Duty Non-Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Siemens HNF365RA 600 VAC 400 Amp 3-Pole 3-Wire NEMA 3R Heavy Duty Non-Fusible Safety Switch

Manufacturer: Siemens | Catalog # HNF365RA | Codale Part # 3593204
$2,244.88/ea
ea
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole Non-Fused in a type 3R enclosure (outdoor). Rated 600VAC (400A).

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
400 Amp
Applications
For Circuit Protection
Connection Type
MECHANICAL LUGS
Enclosure
NEMA3R
Load Rating
3 W
Material
Steel
Mounting Type
2 or 3 Point Mounting Holes
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Cycles
10000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty, Non-Fused, Single Throw
Voltage
600 Volt
Wattage
6 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
887621872441
Housing Material
304 Stainless Steel
Product UPC
88762187244
Weight
83.000 lb

Dimensions

Height
33.47 Inch
Length
6.94 Inch
Width
22.400 in

Certifications and Compliance

Country of Origin
Mexico
