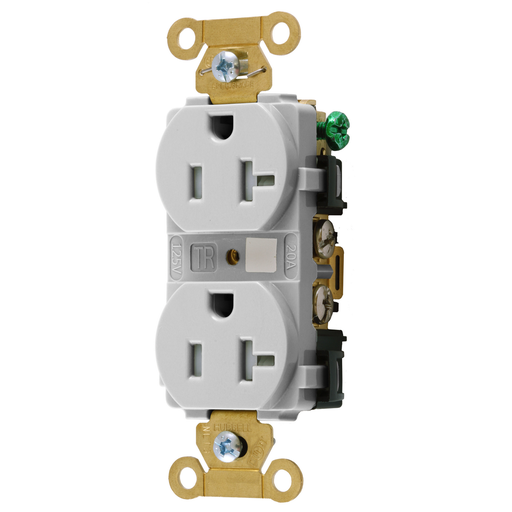

Hubbell HBL5362WTRDUP Receptacle, IND, TR, 20A/125V, 5-20R, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5362WTR | Codale Part # 3594184
$12.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty
Conductor Size
12-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Spade, 2 Terminals
Type
Traditional, Temper-Resistant, Decorator
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585542546
Color
White
Environmental Conditions
Indoor Only
Product Series
Extra Heavy Duty
Product UPC
78358554254
Weight
0.2 lb

Dimensions

Height
1.66 Inch
Length
3.28 Inch
Width
1.32 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Patented TR design eliminates plug-in difficulty and TR complaints
  • Fed-Spec UL listing insures proven performance in demanding applications
  • Brass mounting strap and Triple Wipe contacts
  • High impact resistant face with circuit I.D. marking area
  • Complies with National Electrical Code (NEC®) requirements for Tamper Resistant receptacles
  • Tamper Resistant
