PAN UTPK6A7BU KeydCu,PC,Cat6A,UTP,C

Manufacturer: PANDUIT | Catalog # UTPK6A7BU | Codale Part # 3594270
$73.91/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet

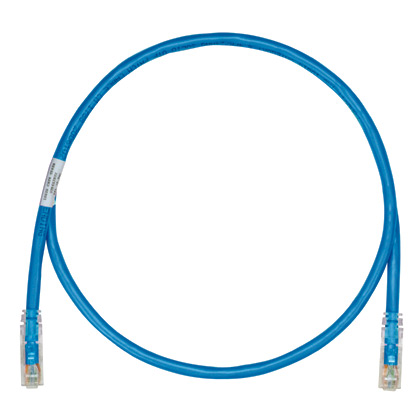

The TX6A™ 10Gig Keyed Cat 6A UTP Patch Cord is a 7-Foot, Blue cord constructed of 23 AWG, unshielded, twisted pair, stranded, CM cable. It's equipped with a TX6A™ 10Gig Keyed Modular Plug on one end and a Non-Keyed Modular Plug on the other. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1) 10GBASE-T Ethernet (2) Data center I/O consolidation (3) Data center server virtualization (4) Consolidation of network interconnects (5) Back-bone aggregation (6) Parallel processing and high speed computing
Boot Color
Clear
Cable Type
23 AWG U/UTP
Conductor Material
Copper
Conductor Size
23 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6A
Plug Type
Modular Plug
Temperature Rating
140 degrees F
Type
Keyed, Category 6A
Wire Size
23 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983190171
Color
Blue
Product UPC
07498319017
UNSPSC
43223303,43223303
Weight
0.2000 lb

Dimensions

Cable Length
7 ft
Length
7 Inch
Outer Diameter
0.28 in
Outside Diameter
7.1 mm
Overall Length
7 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds the requirements of ANSI/TIA/EIA-568-B.2-10 Category 6A and ISO 11801 Class EA Edition 2.1 standards for supporting 10GBASE-T transmission over twisted-pair cabling systems as part of the PANDUIT TX6A 10GIG UTP Copper Cabling System; Certified component performance to the ANSI/TIA/EIA-568-B.2-10 Category 6A and ISO 11801 Class EA standards for supporting 10GBASE-T transmission over twisted-pair cabling systems; Meets ANSI/TIA-968-A; Meets IEC 60603-7; Meets IEEE 802.3af and draft requirements of IEEE 802.3at for PoE Plus ; UL 1863; RoHS Compliant
