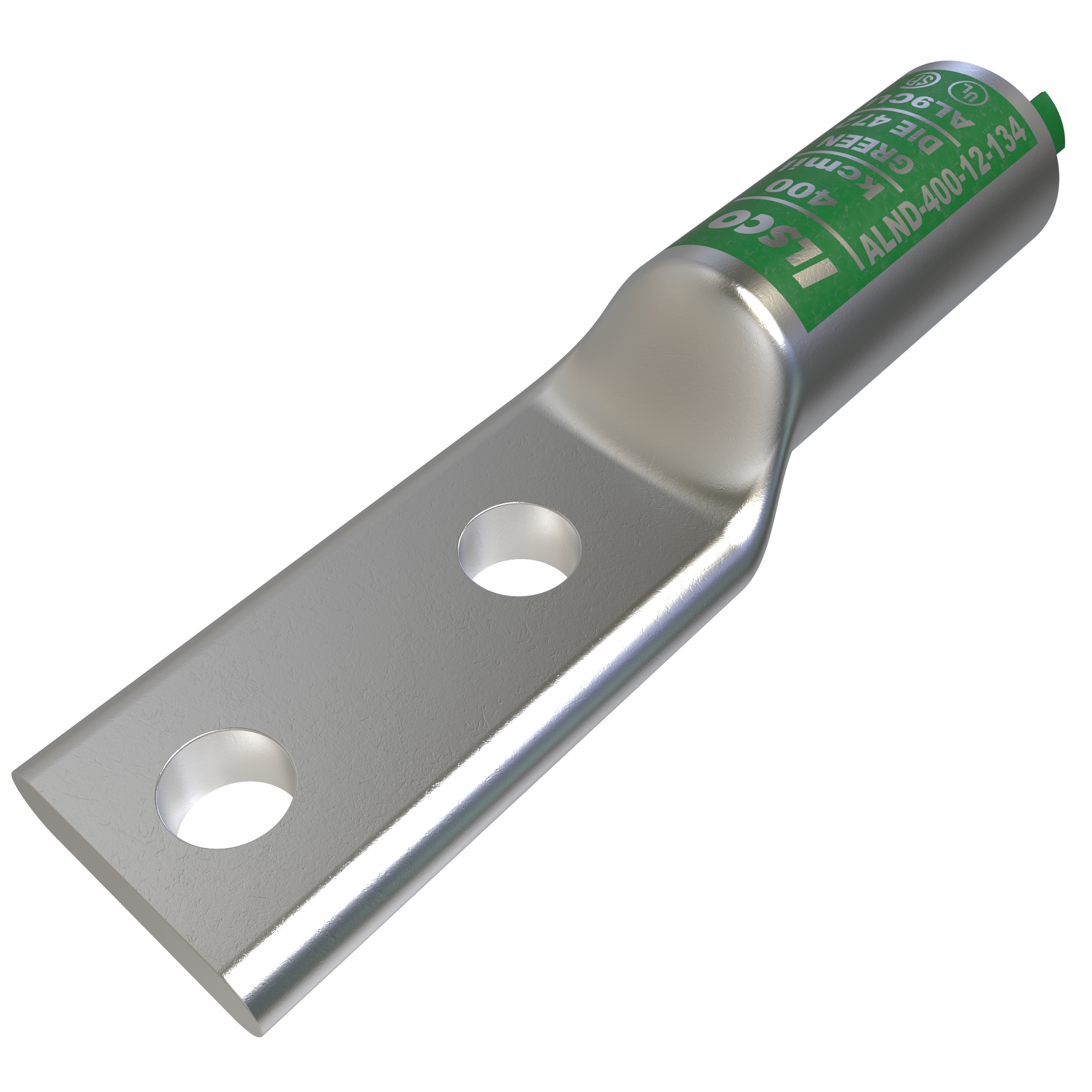

Product image for Ilsco ALND-400-12-134 SureCrimp® Aluminum Compression Lug, Conductor Size 400, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco ALND-400-12-134 SureCrimp® Aluminum Compression Lug, Conductor Size 400, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALND-400-12-134 | Codale Part # 3595015
$61.47/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 400 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Green, primary color Silver, die index 472,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
2.303 in
Barrel Type
Long
Color Coding
Green
Conductor Material
Aluminum,Copper
Conductor Size
400 MCM
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
2 Hole
Size
L:5.99;W:1.623;H:1.233 IN
Standard
UL File Number: E6207,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Strip Length
60.083 mm
Temperature Rating
90 degrees C
Type
ALND:2 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669687637
Color
Green,Silver
Product UPC
78366968763
Weight
0.357 lb

Dimensions

Height
1.233 Inch
Inside Diameter
0.762 in
Length
5.99 Inch
Outside Diameter
1.188 in
Width
1.623 in
