PAN F92ELLNLNSNM005 OS2, 2f 1.6mm P

Manufacturer: PANDUIT | Catalog # F92ELLNLNSNM005 | Codale Part # 3596006
$150.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

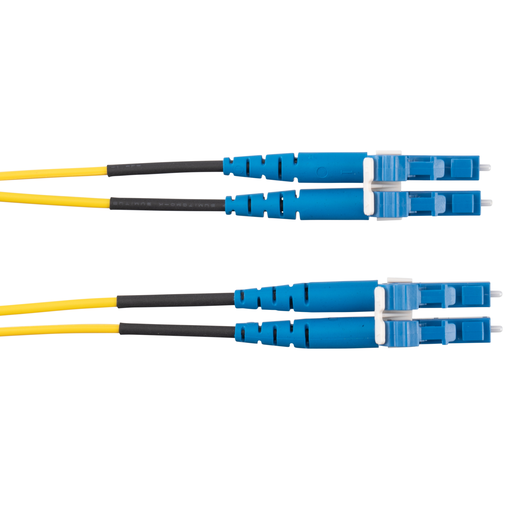

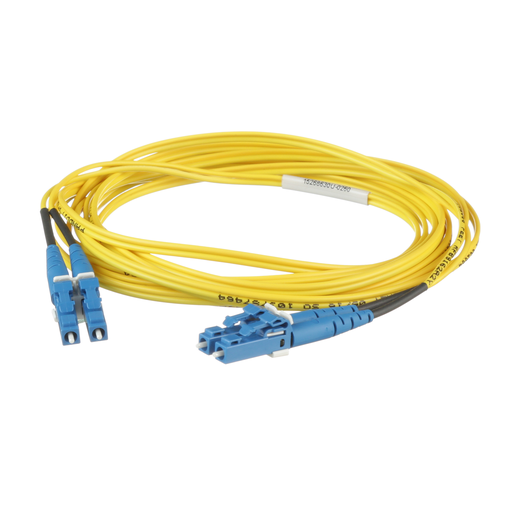

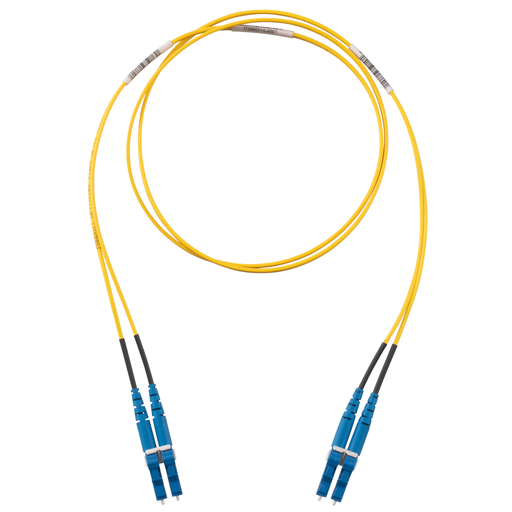

The duplex fiber patch cord is OS2 with a 1.6mm cable jacket. It is Low Smoke Zero Halogen (LSZH), features LC Duplex to LC Duplex connectors, has standard insertion loss and is 5 meters in length

Technical Information

Applications
Entrance Facilities, Telecommunication Rooms, Data Centers, at the Desk and Network Applications to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution, and Equipment Distribution Areas
Body Type
Duplex
Boot Color
Aqua
Cable Type
Duplex
Connector Type
LC Duplex
Fiber Cable Size
9/125 m
Fiber Type
OS2
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Number of Fibers
2
Number of Poles
2 Pole
Number of Screws
2
Plug Type
LC Duplex
Standard
CSA,NOM,UL
Temperature Rating
140 degrees F
Type
OS2, 2-Fiber
Wire Size
1.6 mm

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983921652
Cable Color
Yellow
Color
Yellow
Environment
Indoor
Product UPC
07498392165
Weight
0.1000 lb

Dimensions

Cable Length
5 m
Length
16.4 Inch
Outer Diameter
0.118 in
Outside Diameter
NA
Overall Length
16.4 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
N
Prop 65
  • N
