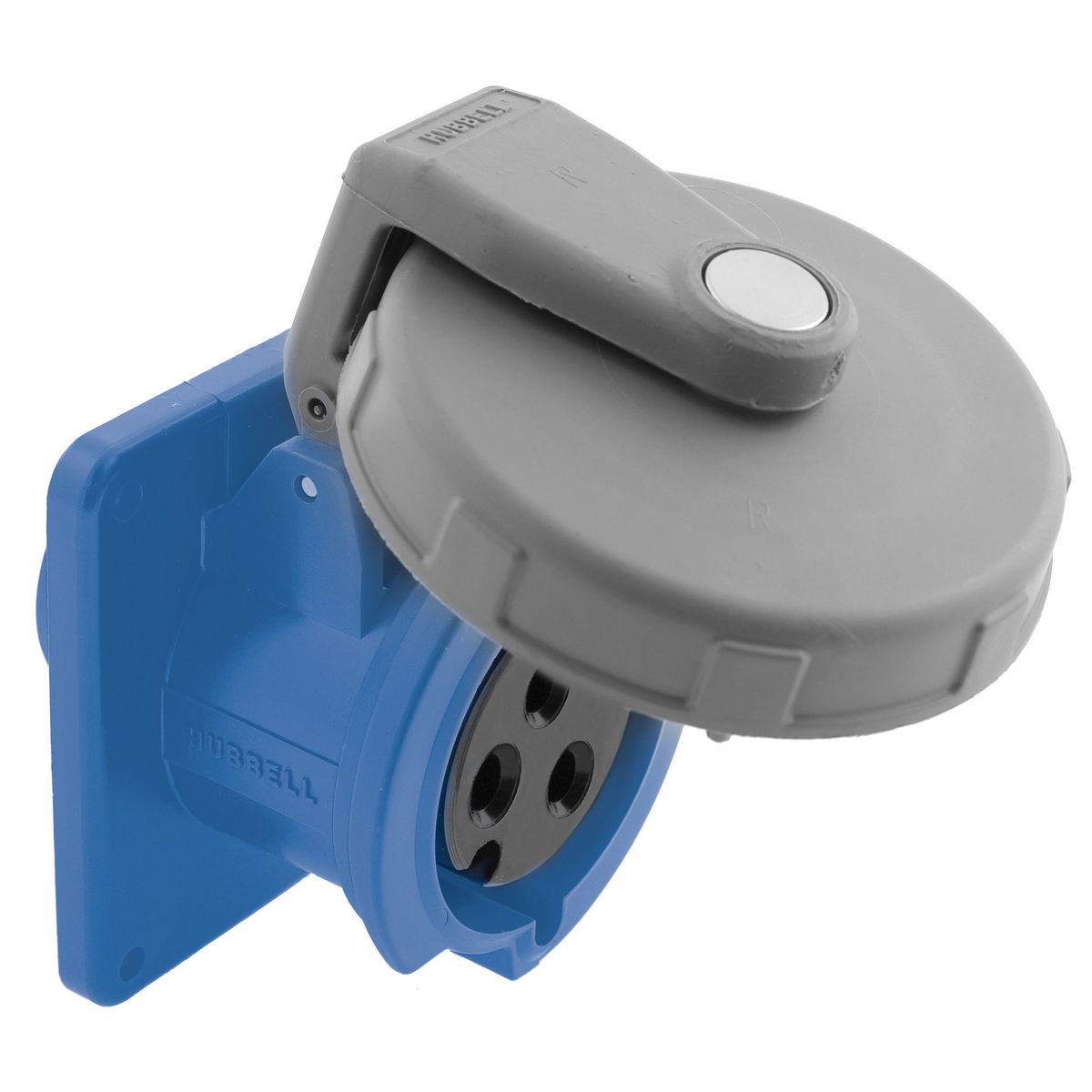

Product image for Hubbell HBL3125R6W PS, IEC, R, 2P3W, 100A 250V/220-240V, IP67
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL3125R6W PS, IEC, R, 2P3W, 100A 250V/220-240V, IP67

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL3125R6W | Codale Part # 3598684
$551.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 125A 220-240V, 2-Pole 3- Wire Grounding, Terminal Screws, Blue, Watertight

Technical Information

Amperage
125 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
3-1/0 AWG
Current
125 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
Standard UL1682
Style
Standard Service
Tc Connection
Pressure Screw Terminals
Type
Watertight
Voltage
220-240 Volt
Wattage
30000 Watt
Wire Count
3
Wire Size
3-0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585403175
Color
Blue
Product Series
HBL Heavy Duty
Product UPC
78358540317
Weight
3.85 lb

Dimensions

Height
12 Inch
Length
7 Inch
Width
5.750 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC60309-1,UL Listed,UL Standard UL1682 & UL1686C2
Country of Origin
Puerto Rico
Features
  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight
