Hubbell HBL1287I 20 Amp 120 VAC 1-Pole Ivory Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1287I | Codale Part # 3600761
$96.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Illumianted Industrial Grade, PresSwitch, General Purpose AC, Single Pole, 20A 120/277V AC, Screw Terminals , Ivory

Technical Information

Action
Snap
Actuator
Push Button
Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Current
20 Amp
Grade
Industrial
Indicator
Light On with Load Off
Material
Thermoset
Number of Poles
1 Pole
Operating Cycles
10000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Single Pole
Switch Type
Single Pole
Tc Connection
Terminal Screws
Type
General Purpose, Standard, Heavy Duty, 2-Position
Voltage
120 Volt
Wattage
2400 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
PresSwitch®

General Product Info

12-Digit UPC
783585016917
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Illuminated
Product UPC
78358501691
Weight
0.2 lb

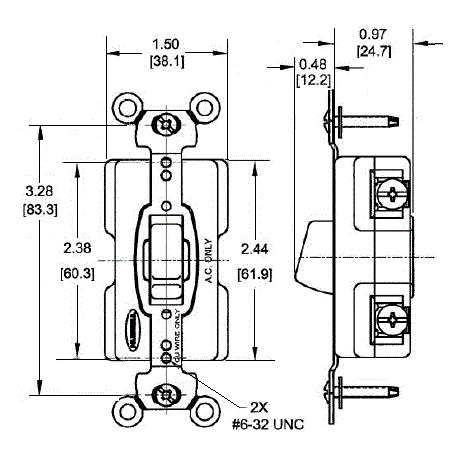

Dimensions

Height
1.45 Inch
Length
3.28 Inch
Width
1.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Large brass binding head screws with deep slots
  • Thread cleaning captive mounting screw
  • Strip gauge for accurate wiring
