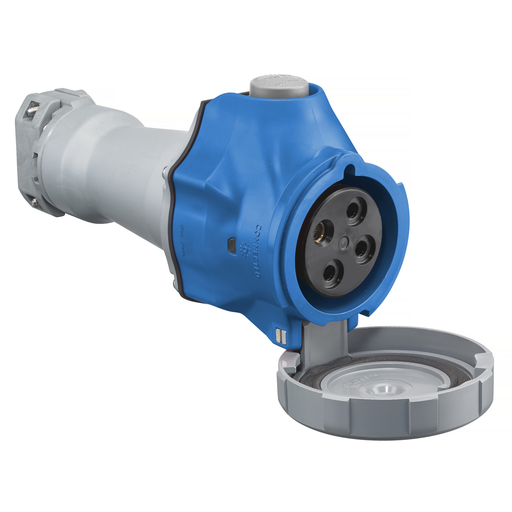

Product image for Hubbell Wiring Devices HBLS430C9W 30 Amp 250 Volt 3-Pole 4-Wire Blue IEC Pin and Sleeve Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell Wiring Devices HBLS430C9W 30 Amp 250 Volt 3-Pole 4-Wire Blue IEC Pin and Sleeve Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLS430C9W | Codale Part # 3600800
$1,738.49/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Pin and Sleeve Devices, Switched, IEC 309, Female Connector, 30A 3-Phase 250V, 3-Pole 4-Wire Grounding, NEMA 4X/IP67, Watertight

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Conductor Size
12-8 AWG
Cord Type
All Portable
Current
30 Amp
Material
Brass
Number of Conductors
4
Number of Poles
3-3 Pole
Number of Wires
4,4
Size
Standard Sized
Style
IP69k NEMA 4X
Tc Connection
Pressure Screw Terminal
Type
Heavy Duty, Advantage Switch-Rated, 3-Pole
Voltage
250 Volt
Wattage
7500 Watt
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
IEC 309 Pin and Sleeve

General Product Info

12-Digit UPC
783585550459
Color
Blue
Product Series
Rated,Advantage Switch
Product UPC
78358555045
Weight
1.9700 lb

Dimensions

Height
4.12 Inch
Length
9.81 Inch
Width
4.810 in

Certifications and Compliance

Country of Origin
USA
Features
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Approved as a diconnecting means for motor circuits and branch circuits
  • UL Type 4X, 12 and IP69k environmental ratings
  • Impact and corrosion-resistant PBT that is color coded by voltage
  • Unswitched ground and power indicating LED lights
