Hubbell HBL69W74 WATERTIGHT RECEP ASSY, NEMA L14-30

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL69W74 | Codale Part # 3600922
$107.05/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

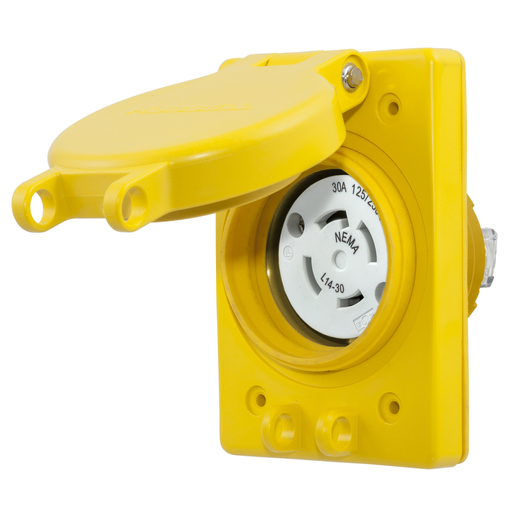

Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase 125/250V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L14-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Conductor Size
18-8 AWG
Contact Material
Nickel Plated Brass
Current
30 Amp
Dielectric Strength
2500 VAC
Grade
Industrial
Material
PBT
Mounting Type
Flush
NEMA
L14-30R
Number of Poles
3 Pole
Number of Wires
4 Wire
Size
4.56 in x 3.10 in x 2.92 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 to 60 degrees C Continuous
Type
Receptacle
Voltage
125/250 Volt
Wattage
7500 Watt
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585433271
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358543327
Weight
0.3000 lb

Dimensions

Height
2.92 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
