HCI HBL2660 LKG RCPT, 30A 125/250V,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2660 | Codale Part # 3602021
$97.72/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

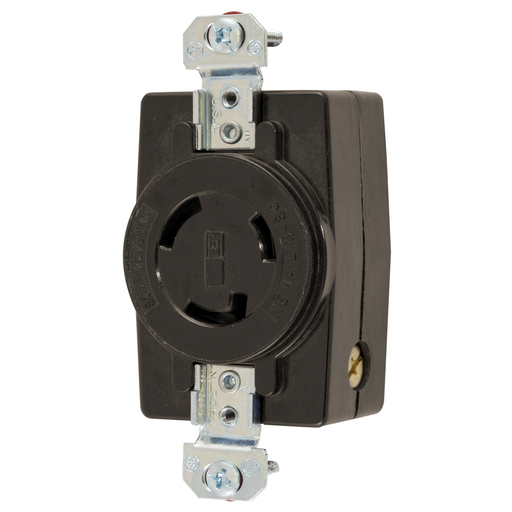

Locking Devices, Twist-Lock®, Single Flush Receptacle, 30A, 125/250V AC, 3 Pole, 3 Wire Non-Grounding, NEMA L10-30R, Nylon face, back and side wire, Black

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
16-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
NEMA
L10-30R
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Teminal
Type
Single Receptacle
Voltage
125/250 Volt
Wattage
7500 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585456775
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358545677
Weight
0.2500 lb

Dimensions

Height
1.66 Inch
Length
4.16 Inch
Width
1.910 in

Certifications and Compliance

Country of Origin
USA
Features
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard
