Hubbell HBL28W47 Plug, NEMA L5-30P, 30A 125V, YL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL28W47 | Codale Part # 3603475
$51.84/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Plug, 30A, 125V, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L5-30P, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial and Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
12-10 AWG
Cord Type
Portable
Current
30 Amp
Material
Elastomeric/Composite
Mounting Type
Cord
NEMA

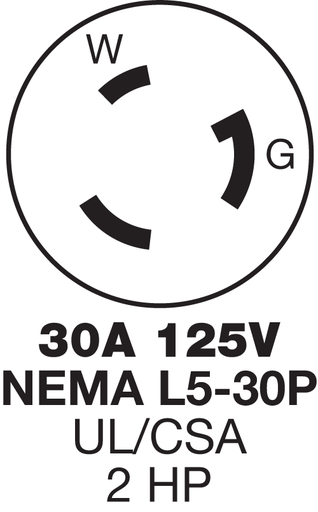

L5-30P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

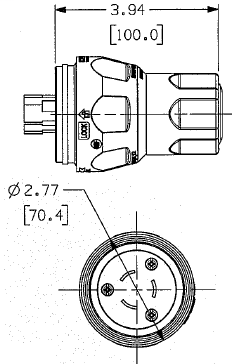

2.77 in x 2.77 in x 3.94 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Type
Standard Sized
Voltage
125 Volt
Wire Count
3
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131429
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358513142
Weight
0.2500 lb

Dimensions

Height
3.94 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
USA
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
