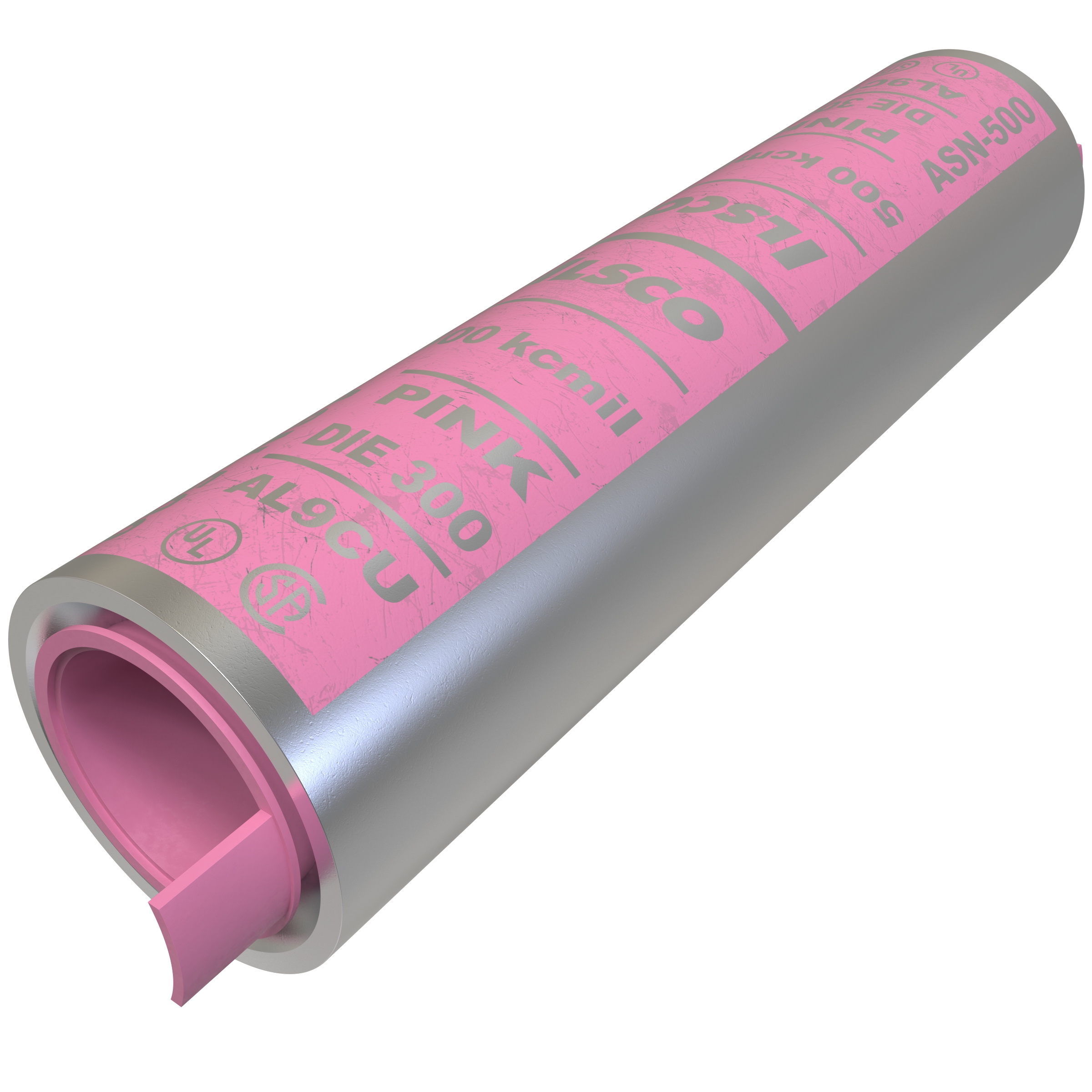

Product image for Ilsco ASN-500 SureCrimp® Aluminum Compression Sleeve, Conductor Size 500, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco ASN-500 SureCrimp® Aluminum Compression Sleeve, Conductor Size 500, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ASN-500 | Codale Part # 3604180
$62.89/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Sleeve, Compression connection, Dual Rated, Aluminum material, Tin plated connector, Standard Barrel, UL, CSA, Copper/Aluminum Primary Conductor 500 kcmil, Contains De-Ox®, 1 conductors, Dimensions 5.13 in x 1.315 in x 1.315 in, rated for 35 kV, die color code Pink, primary color(s) Silver,

Technical Information

Applications
Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used
Barrel Type
Standard
Color Coding
Pink
Conductor Material
Aluminum,Copper
Conductor Size
500 kcmil
Conductor Type
Aluminum and Copper
Connection Type
Compression
Die Code
300
Material
Aluminum
Number of Conductors
1
Size
L:5.13;W:1.315;H:1.315 IN
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
Dual Rated, Chamfered Barrel
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669184846
Color
Pink
Finish
Electro-Tin Plated
Product UPC
78366918484
Weight
0.386 lb

Dimensions

Height
1.315 Inch
Inside Diameter
0.854 in
Length
5.13 Inch
Outside Diameter
1.315 in
Width
1.315 in
