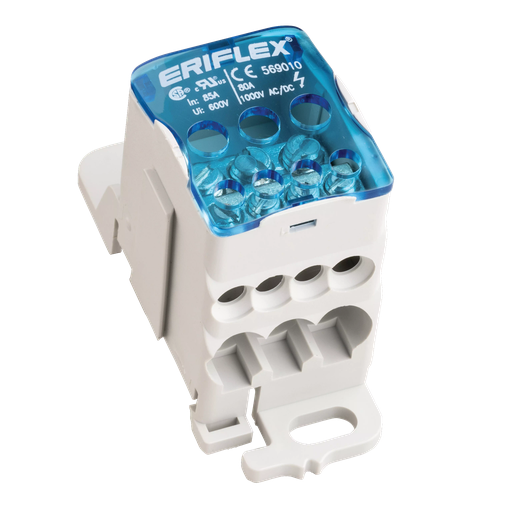

Erico 569010 Single Pole Dist. Block, 85 A UL/CSA, Cable Line, 6 Cables Load, Copper

Manufacturer: Caddy Fasteners | Catalog # 569010 | Codale Part # 3605215
$22.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Single Pole Dist. Block, 85 A UL/CSA, Cable Line, 6 Cables Load, Copper

Technical Information

Amperage
80 Amp; 85 Amp
Applications
Power Connections
Enclosure Rating
IP20
Flamability Class
UL 94V-0
IP Rating
IP 20
Material
Copper,Thermoplastic
Number of Conductors
Cable; 6 Cables
Number of Poles
1 Pole
Size
1.82x2.72x1.18
Standard
CUR,UR
Temperature Rating
185 Deg F
Type
Distribution Blocks
Voltage
1,000 VAC/DC; 600 Volt

Packaging

Shipping Weight
0.15 lb

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856594178
Color
Blue,White
Environmental Conditions
86 To 167 Deg F
Finish
Tinned
Product UPC
78285659417
Weight
0.06 kg

Dimensions

Depth
46-46
Height
69-69
Width
1.18 in
DISK UNSPSC
39121410
Features
  • Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
  • Screw retaining cover is hinged and removable
  • Design allows for visual inspection of conductor and confirmation of connection
  • Modular snap-together blocks for building multi-pole power blocks
  • Easily clips onto DIN rail or mounts to panel with screws
  • 95% fill ratio
  • RoHS compliant
  • Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
  • Halogen free
Certifications
  • CSA CSA C22.2 No. 158
  • cUR CSA C22.2 No. 158
  • UR ANSI/UL 1059
  • CE, ERIFLEX UD EN 60947-7-1
  • EN 45545 EN 45545-2:2013
  • UKCA, ERIFLEX UD EN 60947-7-1
