HWDK HBL27W81 CONN,W/TIGHT,3PH 20A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL27W81 | Codale Part # 3605711
$213.64/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Connector, 20A, 3 Phase WYE 120/208V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L21-20R, Yellow

Technical Information

Amperage
20 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Contact Material
Nickel-Plated Brass
Cord Size
0.325 - 0.875 in
Current
20 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
L21-20R
Number of Conductors
5-Wire Grounding
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

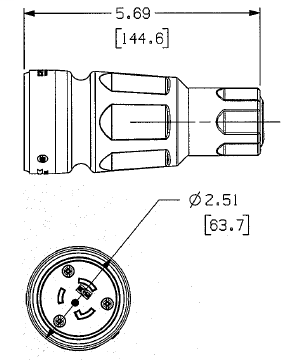

Size
2.51 in x 2.51 in x 5.69 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Connector Body
Voltage
120/208 Volt
Wire Count
5

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131832
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
Product UPC
78358513183
Weight
0.3000 lb

Dimensions

Height
5.69 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
