HWDK HBL26W82 PLUG,W/TIGHT,3PY 20A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26W82 | Codale Part # 3605713
$110.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Plug, 20A, 3 Phase WYE 277/480V, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L22-20P, Yellow

Technical Information

Amperage
20 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S AWG Min, 10/3 S, 10/4 S, 10/5 S AWG Max
Contact Material
Nickel-Plated Brass
Cord Size
0.325 - 0.875 in
Cord Type
SJ, S, All Portable
Current
20 Amp
Dielectric Strength
2500 VAC
Material
Composite/Elastomeric
Mounting Type
Cord
NEMA
L22-20P
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
2.51 in x 2.51 in x 3.96 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Plugs
Voltage
277/480 Volt
Wire Count
5
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131689
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
Product UPC
78358513168
Weight
0.2500 lb

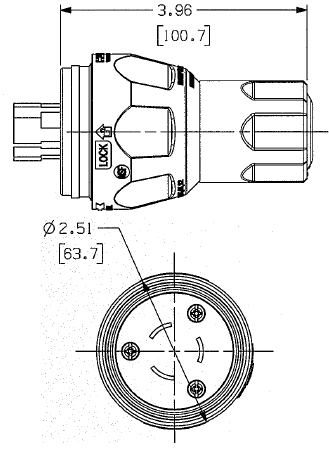

Dimensions

Height
3.96 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
USA
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
