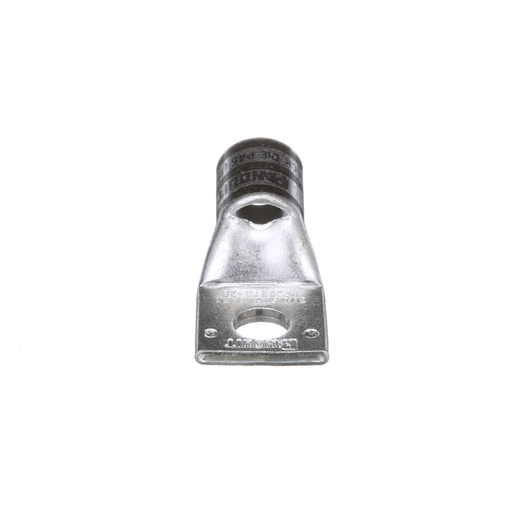

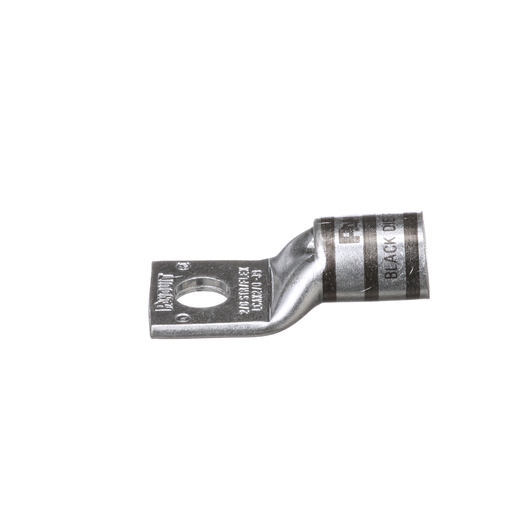

Panduit LCB2/0-38-X 1-Hole 2/0 AWG 3/8 Inch Stud Hole Copper Compression Lug

Manufacturer: PANDUIT | Catalog # LCB2/0-38-X | Codale Part # 3606048
$2,390.81/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
50 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCB2/0-38-X Tin-Plated Copper Compression Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
1.5 in
Barrel Type
Long
Cable Size
AWG
Color Coding
Black
Material
Copper
Number of Holes
1 Hole
Size
2/0 AWG Code
Stud Size
0.375 in
Tongue Thickness
0.13 in
Tongue Type
Standard
Tongue Width
0.85 in
Type
Type LCB
Voltage
35000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983901302
Color
Black
Finish
Tin Plated
Product UPC
07498390130
Weight
0.0106 lb

Dimensions

Outer Diameter
0.58 in
Overall Length
2.82 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved, NEBS Level 3
Prop 65
  • No
