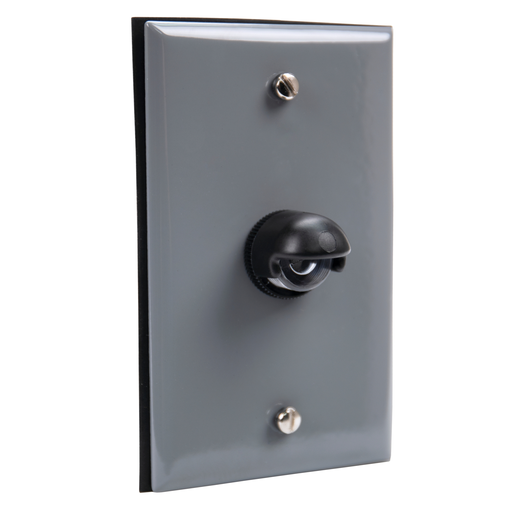

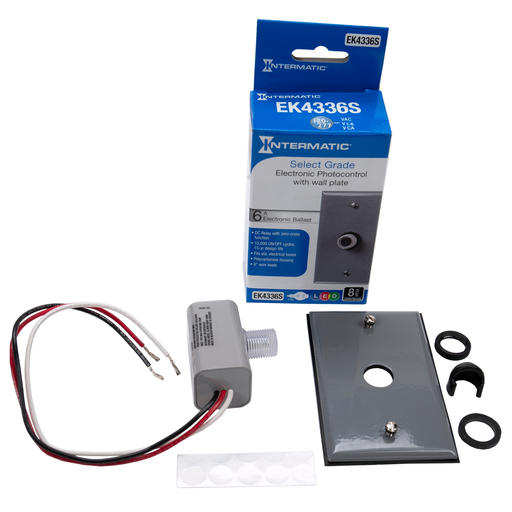

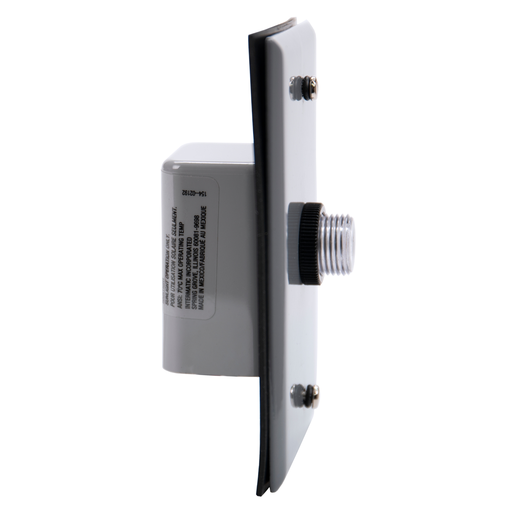

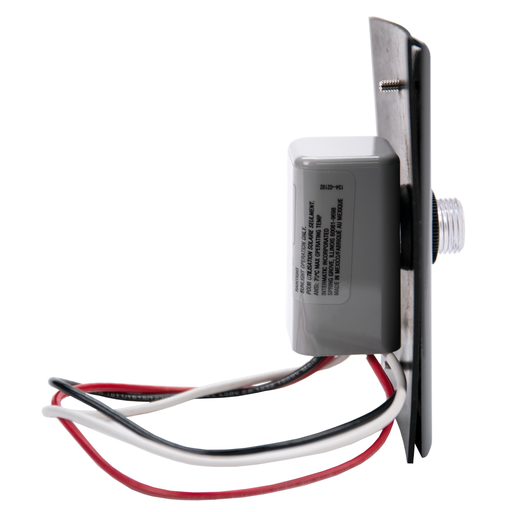

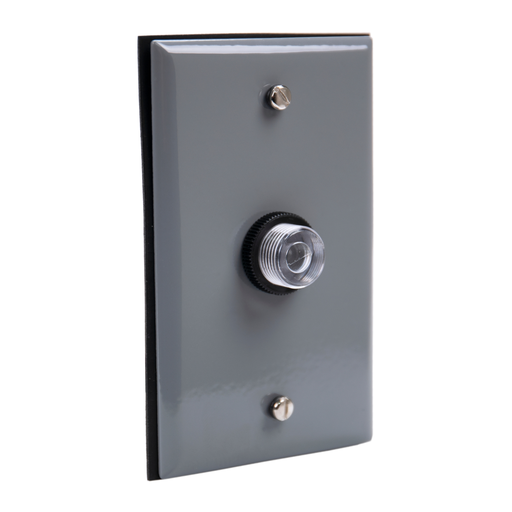

Intermatic EK4336S P/C W/WALL PLATE

Manufacturer: Intermatic | Catalog # EK4336S | Codale Part # 3606602
$43.69/ea
ea
Log in or register to view your price, purchase history, and more!
37 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
These electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes, or outdoor lighting fixtures. Ideal for LED and induction fixtures with long-life expectations

Technical Information

Applications
Outdoor Lighting Control
Enclosure
Plastic Outdoor
Input Voltage
120-277 V
Material
Plastic
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Operating Cycles
10k
Operating Temperature
-40degrees F to 158degrees F
Power Consumption
400m W
Sensor Type
Silicon
Size
4.5 L x 2.75 W x 1.24 D Inch
Tc Connection
Color coded Leads
Temperature Rating
-40 to 158 degrees F
Type
Wall Mount Photocell
Voltage
120-277 VAC
Wire Length
228.6 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275148314
Color
Gray
Product UPC
07827514831
Weight
0.4 lb

Dimensions

Depth
1-1/4 Inch
Height
2-1/4 Inch
Warranty Length
8 yr
Width
1.313 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 255 J MOV surge protection element
  • Fits standard single-gang in-wall electrical boxes
  • Wall Plate is included
