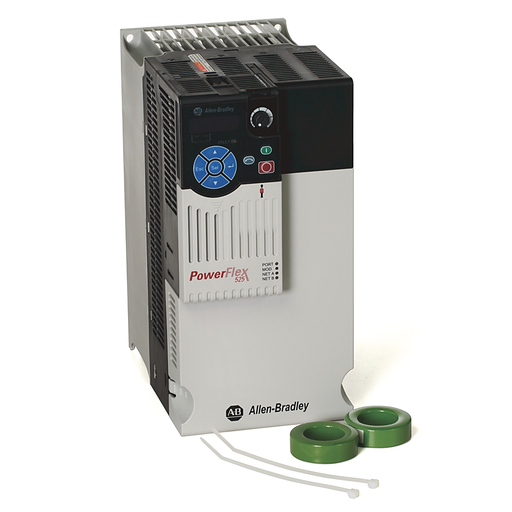

Product image for Allen Bradley 25B-D024N114 PowerFlex 525 11kW (15Hp) AC Drive
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Allen Bradley 25B-D024N114 PowerFlex 525 11kW (15Hp) AC Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 25B-D024N114 | Codale Part # 3607990
$3,573.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
PowerFlex 525 11kW (15Hp) AC Drive

Technical Information

Amperage
24 Amp
Applications
Supporting Protocol for DeviceNet, EtherNet/IP, MODBUS, PROFIBUS
Connection Type
Fixed Terminal Block
Enclosure
IP20,UL-NEMA Type Open
Enclosure Rating
IP20
Enclosure Type
IP20
Frequency
50-60 Hz
IP Rating
IP20
Mounting Type
Panel Mount
Output Current
24 A
Power Factor
0.98
Power Rating
11 kW
Size
Frame D
Standard
C-TICK,CCC,CE,CUL,GOST,KC,MARINE,UL
Tc Connection
Fixed Terminal Block
Type
AC Drive
Voltage
480 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
PowerFlex® 525

General Product Info

12-Digit UPC
884951886063
Product UPC
88495188606
Weight
10.3700 lb
Features
  • Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
  • Features Safe Torque-off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
  • Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
  • Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
  • Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
  • Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit
  • Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
