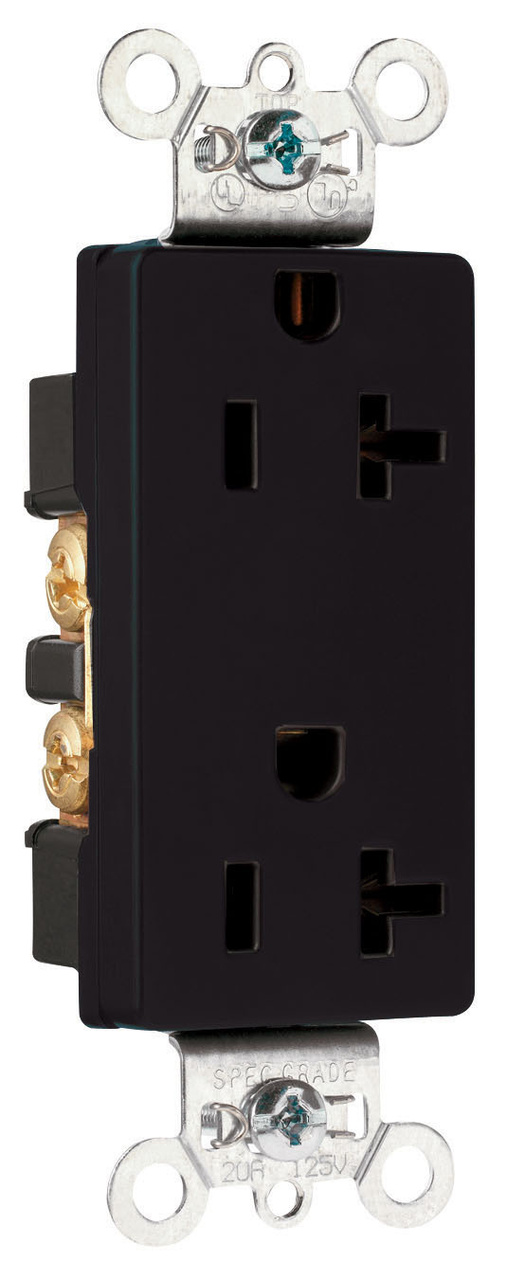

Pass & Seymour 26352-BK Heavy-Duty Decorator Spec Grade Duplex Receptacle, Back & Side Wire, 20A 125V - Black

Manufacturer: Legrand Pass & Seymour | Catalog # 26352BK | Codale Part # 3608962
$38.66/ea
ea
Log in or register to view your price, purchase history, and more!
15 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Ivory

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall, Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .833 W x 3.813 H In
Style
Decorator
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Decorator, Heavy Duty
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007785364
Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Decor, Gloss
Product UPC
78500778536
Weight
0.2400 lb

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • All devices fit standard #26 opening wall plate.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
