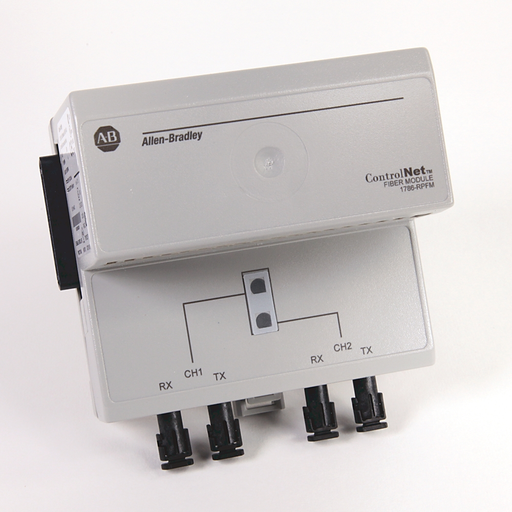

Allen-Bradley 1786-RPFM Controlnet Fiber Ring Medium Repeater

Manufacturer: Allen Bradley / Rockwell | Catalog # 1786-RPFM | Codale Part # 361548
$1,883.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ControlNet Fiber Ring Medium Repeater

Technical Information

Applications
Designed to Solve Medium Distance Applications that Require Less Than 300 m (984 ft)
Mounting Type
DIN Rail
Number of Ports
2
Power Supply
24 V DC Power Supply
Standard
CE,CSA,GOST,KC,MARINE,NRTL,RCM,UL
Type
Fiber Repeater Adaptor Module
Voltage
24 VDC

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlNet™

General Product Info

12-Digit UPC
612598171101
Product UPC
61259817110
Weight
0.5500 lb
Features
  • Supports EtherNet/IP Media redundancy
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Supports Master Device redundancy
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Displays useful field bus diagnostic information via status LEDs
  • Links an EtherNet/IP™ network to a single H1 segment
  • Supports multiple levels of device and media redundancy
  • Use with the 1786-RPFS repeater
  • Supports ControlNet Media redundancy
  • Provides all basic diagnostic information in the input assembly
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Self-contained, panel, or DIN-rail mountable device
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Includes 200 micron cable
  • Supports as many as 24 PA field devices
  • Links a ControlNet™ network to a single H1 segment
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
