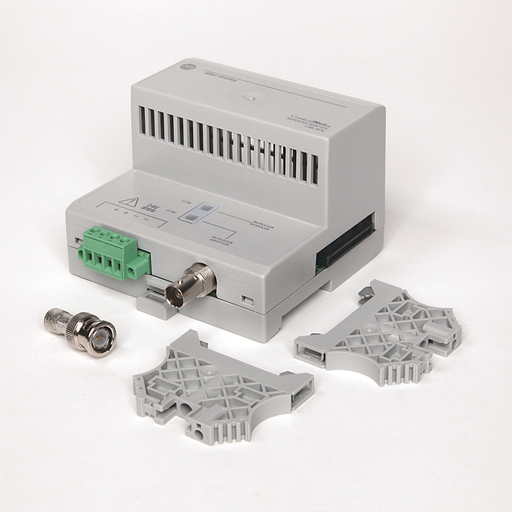

Allen-Bradley 1786-RPA Controlnet Modular Repeater Adaptor

Manufacturer: Allen Bradley / Rockwell | Catalog # 1786-RPA | Codale Part # 361551
$2,525.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ControlNet Modular Repeater Adaptor

Technical Information

Applications
ControlNet
Mounting Type
DIN-Rail
Number of Ports
1
Power Supply
24 V DC Power Supply
Standard
CE,CSA,GOST,KC,MARINE,NRTL,RCM,UL
Type
Coax
Voltage
24 VDC

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlNet

General Product Info

12-Digit UPC
612598171095
Product UPC
61259817109
Weight
0.7700 lb
Features
  • Supports Master Device redundancy
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Use with the 1786-RPFS repeater
  • Self-contained, panel, or DIN-rail mountable device
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Links a ControlNet™ network to a single H1 segment
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Supports as many as 24 PA field devices
  • Includes 200 micron cable
  • Links an EtherNet/IP™ network to a single H1 segment
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Supports EtherNet/IP Media redundancy
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Provides all basic diagnostic information in the input assembly
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Supports ControlNet Media redundancy
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Displays useful field bus diagnostic information via status LEDs
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Supports multiple levels of device and media redundancy
