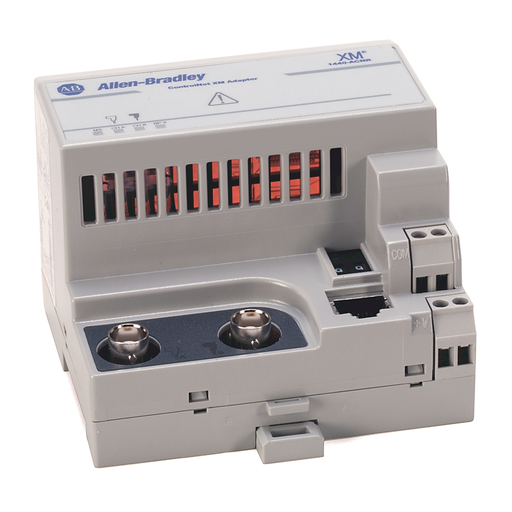

Allen Bradley 1440-ACNR Network Adapter

Manufacturer: Allen Bradley / Rockwell | Catalog # 1440-ACNR | Codale Part # 3628195
$2,479.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Network Adapter

Technical Information

Applications
For Bridge up to 10 XM Dynamic Modules
Mounting Type
DIN
Operating Temperature
158 degrees F
Power Supply
24V DC
Standard
CCC,CE,CUL,KC,RCM,UL
Temperature Rating
-20 to 70 degrees C
Type
Network Adapter
Voltage
24 VDC

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Xm

General Product Info

12-Digit UPC
662074728947
Product UPC
66207472894
Protocol
CIP
Weight
0.6800 lb

Dimensions

Height
3.4 Inch
Length
2.7 Inch
Width
3.7 in
Features
  • Includes two tachometer inputs, each measures 25V (50V max. peak to peak)
  • Includes the ability to download defect frequencies to collectors
  • Allows the ability to import/export data from any OPC server
  • Module I/O and configuration tables are exposed as common tags in the Studio 5000 Logix Designer application
  • Includes single on-board relay
  • Includes four virtual relays or four additional relays (when connected to an XM® 441 Expansion Relay Module)
  • Includes fault frequency identification
  • Offers single on-board relay
  • Includes one tachometer channel that accepts input from most speed measurement sensors and can measure speeds 11.2M RPM with pulse rates 150,000 events per revolution
  • Offers signal processing which provides two levels of integration and FFT processing with as many as 30 measured parameters
  • Communicates via ControlNet™ network (connected through a 1440-ACNR ControlNet Adapter)
  • Allows tags to be imported from a Logix controller, scheduled or on demand
  • Supports maximum of 10 1440-DYN02-01RJ Dynamic Measurement Modules on a ControlNet™ network
  • Includes one virtual relay
  • Supports Dynamix 2500 and Enpac 2500 Data Collectors
  • Includes two channels connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Includes module configuration managed by a ControlLogix® controller and the Studio 5000™ Logix Designer application
  • Offers live data view from any 1444 series monitor on any machine, by any user from any location
  • Allows communication via DeviceNet™ network
  • Includes one digital output for use with an XM-442 EODS Relay module
  • Provides ability to monitor shaft, casing, or pedestal vibration in rotating equipment
  • Offers signal processing which provides synchronous or asynchronous measurements
  • Offers built-in and user editable rule sets
  • Includes two channels which connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Provides ability to schedule automated data collection from any number of 1444 series or 1440 series monitors or machines
