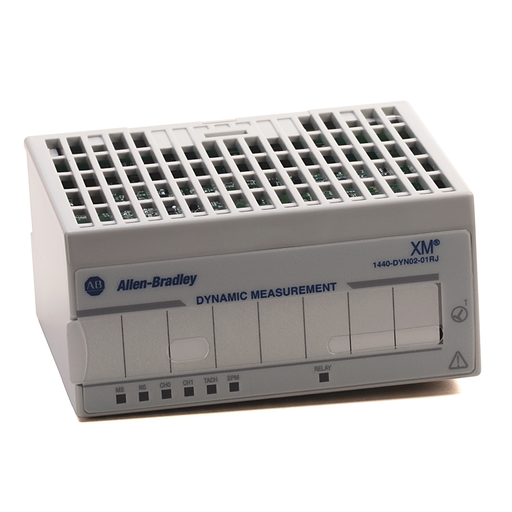

Allen-Bradley 1440-DYN02-01RJ Dynamic Measurement Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 1440-DYN02-01RJ | Codale Part # 3628196
$5,327.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
XM Standard Dynamic Measurement Module

Technical Information

Amperage
250 Amp
Applications
Condition Monitoring
Mounting Type
XM Terminal Base: 1440-TBS-J
Number of Channels
2
Operating Temperature
158 degrees F
Size
97 x 94 x 94
Standard
CCC,CE,CUL,KC,RCM,UL
Type
Condition Monitoring Module
Voltage
24 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
XM

General Product Info

12-Digit UPC
662074855377
Product UPC
66207485537
Weight
0.7000 lb
Features
  • Allows tags to be imported from a Logix controller, scheduled or on demand
  • Includes single on-board relay
  • Offers live data view from any 1444 series monitor on any machine, by any user from any location
  • Offers single on-board relay
  • Includes two tachometer inputs, each measures 25V (50V max. peak to peak)
  • Allows the ability to import/export data from any OPC server
  • Includes the ability to download defect frequencies to collectors
  • Includes fault frequency identification
  • Provides ability to monitor shaft, casing, or pedestal vibration in rotating equipment
  • Includes module configuration managed by a ControlLogix® controller and the Studio 5000™ Logix Designer application
  • Includes two channels connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Includes one tachometer channel that accepts input from most speed measurement sensors and can measure speeds 11.2M RPM with pulse rates 150,000 events per revolution
  • Provides ability to schedule automated data collection from any number of 1444 series or 1440 series monitors or machines
  • Supports Dynamix 2500 and Enpac 2500 Data Collectors
  • Allows communication via DeviceNet™ network
  • Supports maximum of 10 1440-DYN02-01RJ Dynamic Measurement Modules on a ControlNet™ network
  • Includes one virtual relay
  • Module I/O and configuration tables are exposed as common tags in the Studio 5000 Logix Designer application
  • Offers signal processing which provides synchronous or asynchronous measurements
  • Includes two channels which connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Includes one digital output for use with an XM-442 EODS Relay module
  • Offers built-in and user editable rule sets
  • Communicates via ControlNet™ network (connected through a 1440-ACNR ControlNet Adapter)
  • Includes four virtual relays or four additional relays (when connected to an XM® 441 Expansion Relay Module)
  • Offers signal processing which provides two levels of integration and FFT processing with as many as 30 measured parameters
