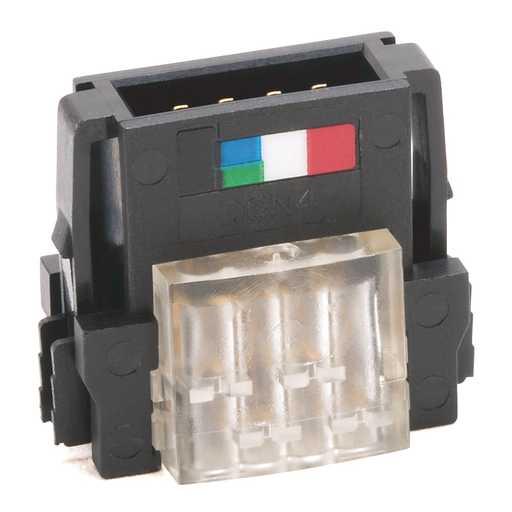

A-B 1485P-K1DL4 1485P Media Drop-

Manufacturer: Allen Bradley / Rockwell | Catalog # 1485P-K1DL4 | Codale Part # 3628643
$35.19/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
1485P Media Drop-Line Connector

Technical Information

Applications
1485C DeviceNet Media
Cable Size
Standard KwikLink Flat Media
Cable Type
Flat Media,KwikLink
Standard
CUL,KC,UL
Type
Drop-Line Connector
Voltage
30 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Rockwell

General Product Info

12-Digit UPC
612598663415
Product UPC
61259866341
Weight
0.0130 lb
Features
  • Both conventions have the same color code going to the same spot but they use a different pin numbering designation
  • Can provide power through only one pair of the four available contacts, so the other available pair can be used for single channel E-stop
  • Ratcheting coupling nut resists vibration
  • Gold plated contacts
  • Physical key to ensure proper connection alignment
  • Polyvinylchloride (PVC) jacket resists oil and chemicals
  • Highly pliable polyvinylchloride (PVC) jacket material
  • E-stop T-ports and shorting plugs are red for easy identification
  • Many end devices, including Rockwell Automation® hardened I/O products, use a different pin numbering convention for 4-pin mini connections than that used on physical media products
  • Sized to fit inside 1-in. conduit
  • Watertight connections (NEMA 4, 6P; IP 67)
