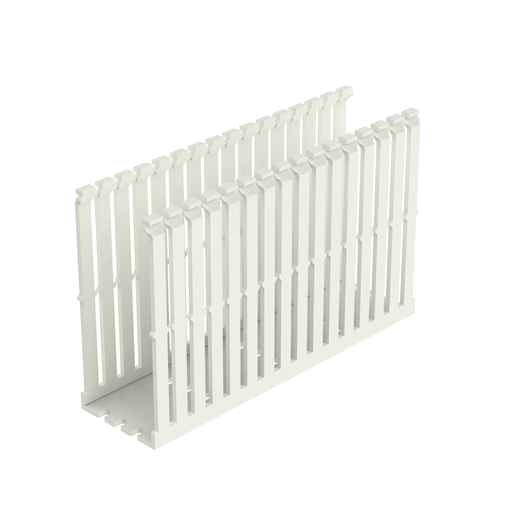

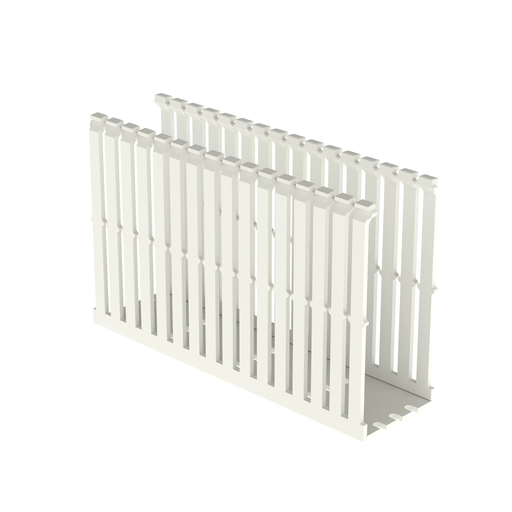

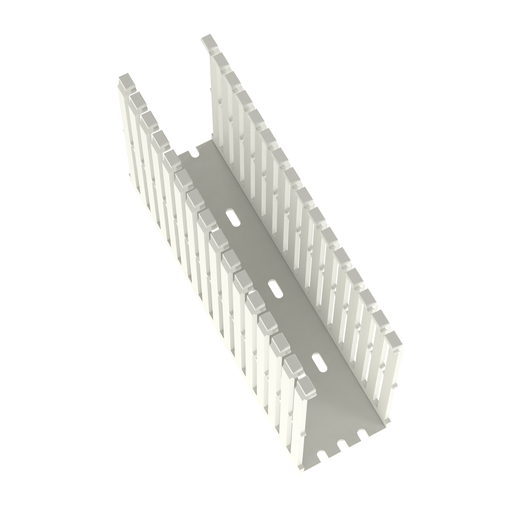

Panduit F2X5WH6 Narrow Slotted Wiring Duct, PVC, 2" x 5" x 6ft, White

Manufacturer: PANDUIT | Catalog # F2X5WH6 | Codale Part # 363784
$85.15/ea
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The F2X5WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122.F (50.C). Mounting holes provided. Lead-free PVC. 5.1" x 2.25" (129.5 mm x 57.2 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 per package.

Technical Information

Applications
Indoor
Material
PVC
Mounting Type
Standard
Size
57.2 x 129.5 mm
Slot Size
5 mm
Tc Connection
Standard Mounting Holes
Type
Base Lead-Free Narrow Slot

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983375646
Color
White
Product UPC
07498337564
Weight
3.1902 lb

Dimensions

Depth
2-1/4 Inch
Height
5.1 Inch
Length
6 Foot
Overall Length
6 ft
Thickness
0.12 IN
Width
5.1 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
