A-B 1494V-DN200-A-B-F NEMA 200 A Fl

Manufacturer: Allen Bradley / Rockwell | Catalog # 1494V-DN200-A-B-F | Codale Part # 3642775
$1,887.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

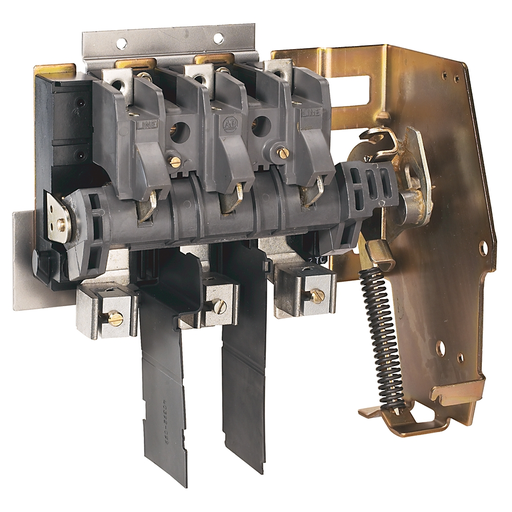

NEMA 200 A Flange Mtd Rod Switch

Technical Information

Amperage
200 Amp
Applications
Disconnect Switch
Conductor Size
6-4/0 AWG
Connection Type
3/8-24 Screw Lug Terminal
Contact Configuration
1 NO Auxiliary
Load Rating
50 - 60 hp at 200 - 208 V, 60 hp at 230 V, 125 hp at 460 V, 150 hp at 575 V, 48 kW at 220 - 240 V, 90 kW at 380 - 440 V, 110 kW at 500 - 600 V
Mounting Type
Flange
Operating Cycles
20000
Standard
CCC,CE,CUL,UL
Temperature Rating
-35 to 40 degrees C
Type
Variable Depth, Non-Fusible, Right Handed
Voltage
600 VAC, 250 VDC
Wire Size
6-0000 AWG

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
NEMA

General Product Info

12-Digit UPC
662074355655
Environmental Conditions
90% Relative Humidity at 20 C, 50% Relative Humidity at 40 C
Housing Material
Phenolic
Product UPC
66207435565
Weight
1.8740 lb
