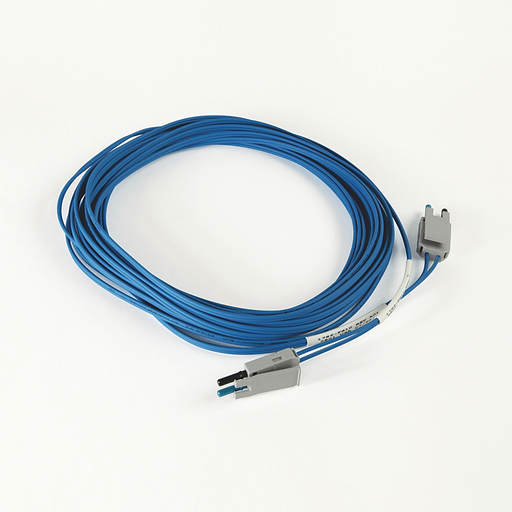

Allen Bradley 1786-FS60 ControlNet Fiber Optic Cable Assembly

Manufacturer: Allen Bradley / Rockwell | Catalog # 1786-FS60 | Codale Part # 3642980
$1,320.66/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ControlNet Fiber Optic Cable

Technical Information

Applications
ControlNet
Fiber Cable Size
200 Micrometers
Number of Fibers
1
Standard
KC
Temperature Rating
176 degrees F
Type
Network Communication Cable

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlNet

General Product Info

12-Digit UPC
612598175451
Product UPC
61259817545
Weight
4.6400 lb
Features
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Includes 200 micron cable
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Links a ControlNet™ network to a single H1 segment
  • Provides all basic diagnostic information in the input assembly
  • Supports as many as 24 PA field devices
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Links an EtherNet/IP™ network to a single H1 segment
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Supports Master Device redundancy
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Supports multiple levels of device and media redundancy
  • Displays useful field bus diagnostic information via status LEDs
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Supports ControlNet Media redundancy
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Self-contained, panel, or DIN-rail mountable device
  • Use with the 1786-RPFS repeater
  • Supports EtherNet/IP Media redundancy
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
