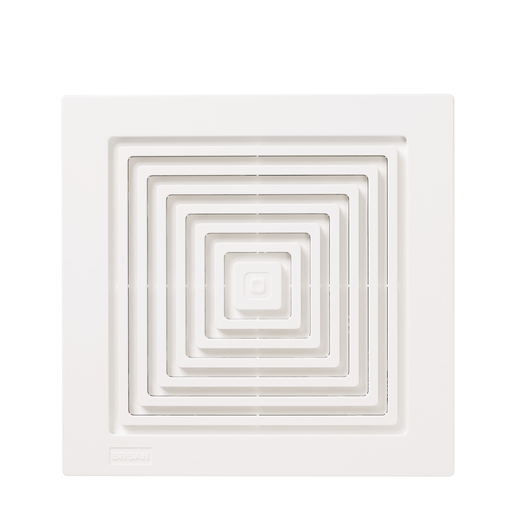

Broan 688 0.9 Amp 120 Volt 50 CFM 4 Sones 9 x 9-1/4 Inch White Polymeric Grille Ceiling/Wall Fan

Manufacturer: Broan-NuTone | Catalog # 688 | Codale Part # 364621
$31.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Broan Standard Economy Series fans are versatile, compact, and economical ventilation solutions.

Technical Information

Airflow Rate
50 CFM
Amperage
0.9 Amp
Applications
For Bathrooms Up To 45 SQ-FT
Duct Shape
Round
Duct Size
3 in
Installation
Ceiling,Wall
Mounting Type
Ceiling,Wall
Nightlight
No
Standard
HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit
Type
Ceiling/Wall Mount Fan
Voltage
120 Volt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715002511
Color
White
Grille Material
Polymeric
Housing Finish
Aluminum
Housing Material
Galvanized
Product Type
Vent Fans Item
Product UPC
02671500251
Weight
3.15 lb

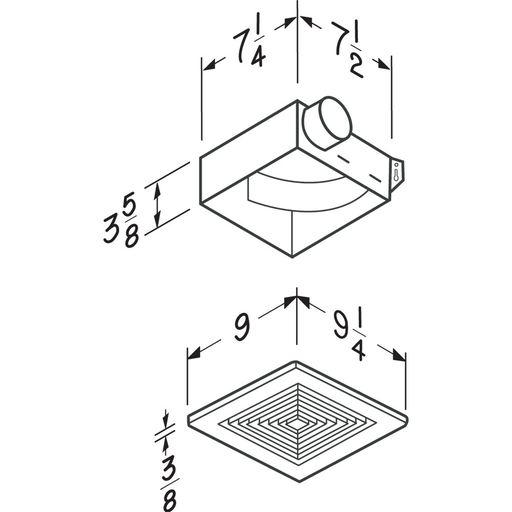

Dimensions

Grille Length
9 in
Grille Width
9-1/4 in
Height
4 Inch
Housing Height
3-5/8 in
Housing Width
7-1/2 in
Length
8 Inch
Warranty Length
1 yr
Width
9.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 4.0 audible sones for privacy while using your bathroom.
  • Compact housing for versatile installation
  • Powerful enough for rooms up to 45 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Double strength mounting flanges with keyhole slots
  • Quiet polymeric damper prevents cold backdrafts with no metallic clatter
  • No electrical knockout to remove
  • Removable wiring cover make connections away from tight corners
  • U.L. listed for tub or shower enclosure with GFCI branch wiring
  • cUL Listed
  • UL Listed For Use Over Tub & Shower With GFCI
