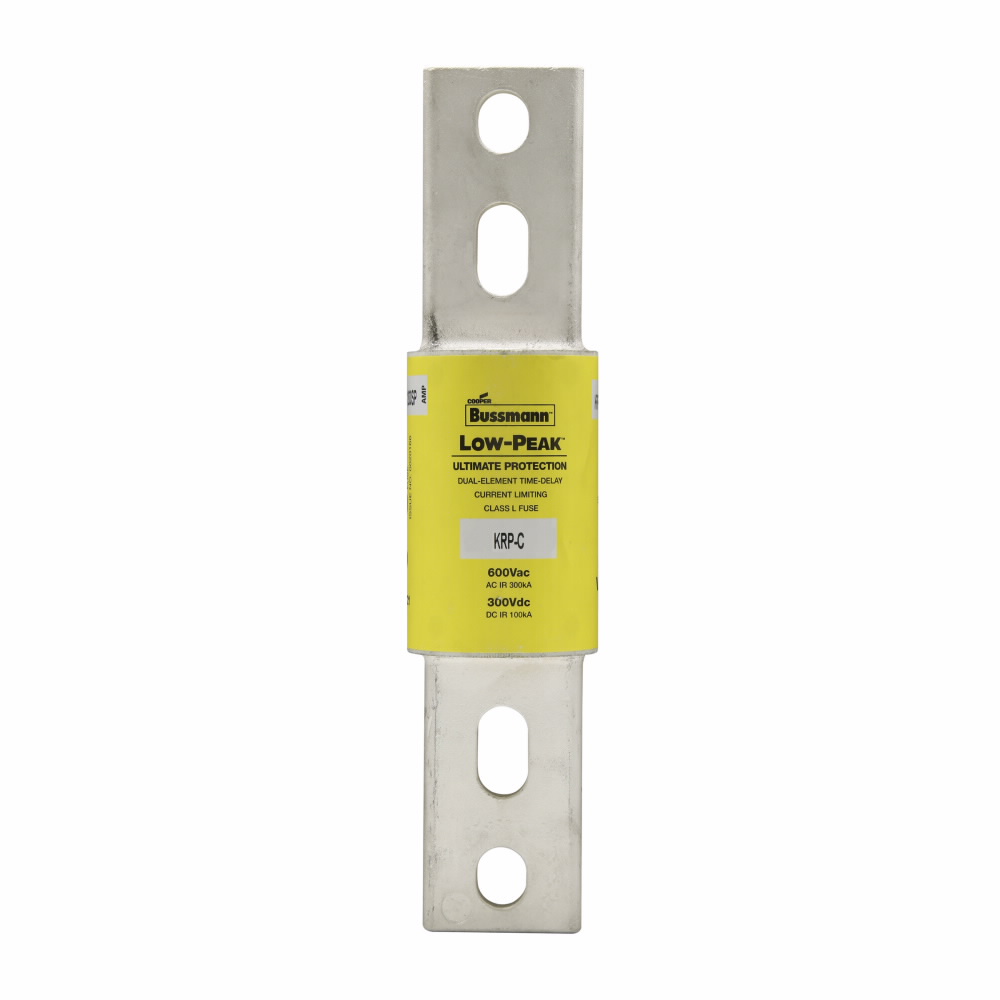

Product image for Bussmann Series KRP-C-1200SP Low Peak Fuse Time Delay
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Bussmann Series KRP-C-1200SP Low Peak Fuse Time Delay

Manufacturer: Eaton Bussmann | Catalog # KRP-C-1200SP | Codale Part # 364886
$1,495.79/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Eaton Bussmann Series Class L fuse, KRP-C, time-delay, current limiting fuse, 1200 A, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc

Technical Information

Amperage
1200 Amp
Applications
Large Distribution Switchboards, Large Machinery Disconnects, Power Panelboards
Connection Type
Blade
End Type
Blade,Bolted
Interrupt Rating
100 kAIC
Material
Melamine
Response Time
4 S At 500%
Size
2.50 In Diameter X 10.75 In Length
Standard
CE,CSA C22.2,UL 248-10
Tc Connection
Bolted blade end x bolted blade end
Type
Current Limiting,Time-Delay
Voltage
300 Volt

Manufacturer Information

Brand
Bussmann
Sub Brand
Low-Peak

General Product Info

12-Digit UPC
051712605120
Class
Class L
Product UPC
05171260512
Weight
4.15 lb

Dimensions

Diameter
2-1/2 Inch
Height
1-3/4 Inch
Length
2.78 Inch
Width
2.78 in
