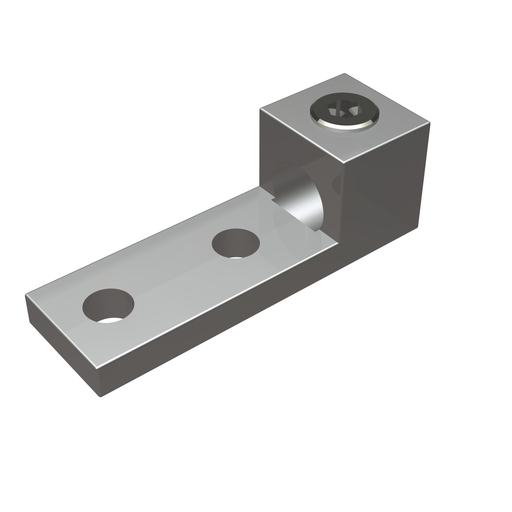

Product image for Burndy KA40U2N Aluminum Universal Terminal, 2 Hole, 300-800 kcmil, 1/2" Stud, 175" Stud Hole Spacing, 1 Screw, Al/Cu Rated, Tin Plated
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy KA40U2N Aluminum Universal Terminal, 2 Hole, 300-800 kcmil, 1/2" Stud, 175" Stud Hole Spacing, 1 Screw, Al/Cu Rated, Tin Plated

Manufacturer: Hubbell-Burndy | Catalog # KA40U2N | Codale Part # 365014
$50.36/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Aluminum Universal Terminal, 2 Hole, 300-800 kcmil, 1/2" Stud, 1.75" Stud Hole Spacing, 1 Screw, Al/Cu Rated, Tin Plated

Technical Information

Applications
For Aluminum and Copper Conductors
Bolt Hole Size
0.50 in
Bolt Size
1/2 in
Conductor Size
300-800 kcmil
Conductor Type
Copper
Connection Type
Terminal
Direct Burial?
No
Material
Aluminum
Number of Conductors
1
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin
Type
Dual Rated, NEMA

Manufacturer Information

Brand
Burndy
Sub Brand
Universal Term

General Product Info

12-Digit UPC
781810370452
Finish
Electro Tin Plated
Product UPC
78181037045
Weight
0.6400 lb

Dimensions

Length
4-3/4 Inch
Pad Width
1.77 in
Width
1.75 in

Certifications and Compliance

Buy American Compliant
Y
Compare
