Burndy YHO1 Wide Range, universal figure H shaped aluminum connector Massive aluminum design minimizes effects of galvanic corrosion Pre-filled with PENETROX and strip sealed to limit oxide growth and increase the life of the connection,111 H,125 L,67 W

Manufacturer: Hubbell-Burndy | Catalog # YHO1 | Codale Part # 365490
$268.72/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Wide Range, universal figure H shaped aluminum connector. Massive aluminum design minimizes effects of galvanic corrosion. Pre-filled with PENETROX and strip sealed to limit oxide growth and increase the life of the connection,1.11 H,1.25 L,.67 W.

Technical Information

Applications
For Copper, Aluminum Or ACSR And Compact Conductors
Conductor Size
6-2 AWG
Conductor Type
ACSR/Aluminum/Copper/Solid/Stranded
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size
0.67 IN Height X 1.11 IN Width X 1.35 IN Length
Tap Size
2, 6, 4, 3.3, 3, 1 AWG
Type
Wide Range

Manufacturer Information

Brand
Burndy
Sub Brand
Loktap™

General Product Info

12-Digit UPC
781810139011
Product UPC
78181013901
Used With
Copper, Aluminum or ACSR and Compact Conductors
Weight
0.0700 lb

Dimensions

Height
1.11 Inch
Length
1-1/4 Inch
Overall Length
32 mm
Width
0.67 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • LOKTAP™ compression connectors are high quality, range-taking devices accommodating many combinations of conductor

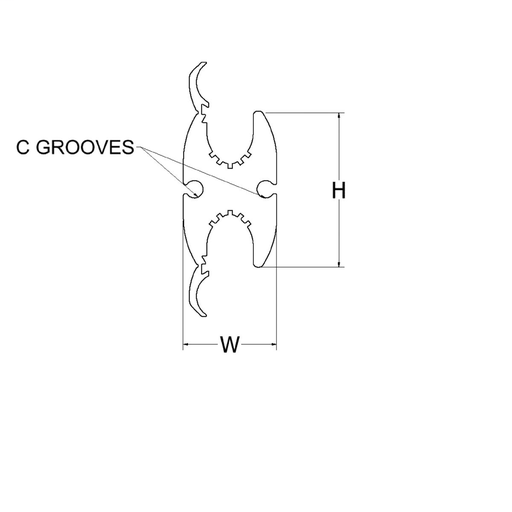

  • LOKTAP™ connectors feature a C groove on both sides of the connector for use in street lighting applications
