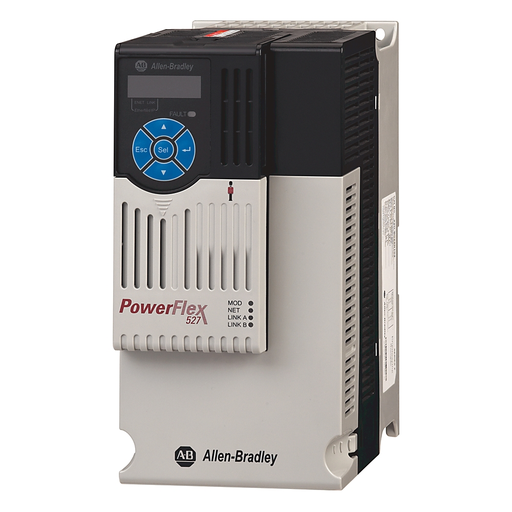

Product image for Allen Bradley 25C-D017N104 PowerFlex 527 7.5kW (10Hp) AC Drive
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 25C-D017N104 PowerFlex 527 7.5kW (10Hp) AC Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 25C-D017N104 | Codale Part # 3665182
$3,092.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
PowerFlex 527 7.5kW (10Hp) AC Drive

Technical Information

Amperage
17 Amp
Applications
AC Drive, 7.5 kW (10 Hp), 380-480V AC Input, 50 Hz/60 Hz, Three-Phase, 17Amp, C Frame, Panel Mounting, IP20/NEMA Open Type, with 7th IGBT Brake
Control Type
Integrated Motion with Ethernet/IP
Enclosure Rating
IP20
Enclosure Type
Frame C, IP20/NEMA Open Type
IP Rating
IP20
Output
17Amp
Output Current
17 A
Power Rating
7.5 kW
Size
C
Standard
C-TICK,CE,CUL,KC,UL
Temperature Rating
-20 to 50 degrees C
Type
AC Drive
Voltage
480 Volt
Wattage
7.5 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
PowerFlex® 527

General Product Info

12-Digit UPC
887172530333
Product UPC
88717253033
Weight
6.0300 lb
Features
  • Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors
  • Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP
  • Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3
  • Offers built-in dual-port EtherNet/IP™ to support a variety of topologies as well as Device Level Ring functionality
  • Provides the ability to transfer drive configuration files to a new machine
  • Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine
