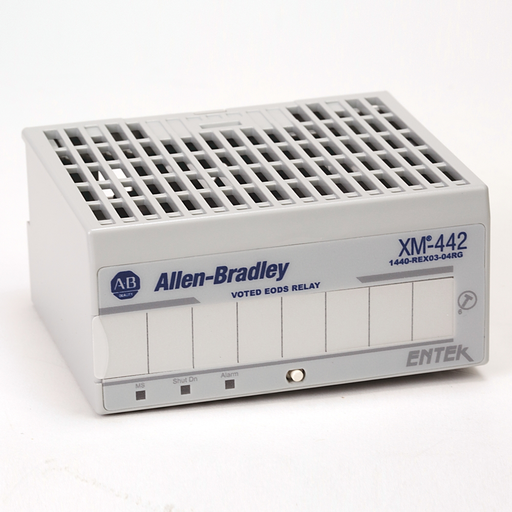

A-B 1440-REX03-04RG Over Speed Rela

Manufacturer: Allen Bradley / Rockwell | Catalog # 1440-REX03-04RG | Codale Part # 3667046
$1,897.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Over Speed Relay Module

Technical Information

Amperage
120 Amp
Applications
Machinery Overspeed Protection
Mounting Type
XM Terminal Base: 1440-TB-G
Operating Temperature
149 degrees F
Size
97 x 94 x 94
Standard
CE,CUL,KC,RCM,UL
Type
Relay Module
Voltage
24 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
XM

General Product Info

12-Digit UPC
781180517532
Product UPC
78118051753
Weight
0.6200 lb
Features
  • Allows the ability to import/export data from any OPC server
  • Includes one tachometer channel that accepts input from most speed measurement sensors and can measure speeds 11.2M RPM with pulse rates 150,000 events per revolution
  • Allows communication via DeviceNet™ network
  • Offers single on-board relay
  • Includes one digital output for use with an XM-442 EODS Relay module
  • Allows tags to be imported from a Logix controller, scheduled or on demand
  • Supports Dynamix 2500 and Enpac 2500 Data Collectors
  • Includes single on-board relay
  • Offers live data view from any 1444 series monitor on any machine, by any user from any location
  • Offers signal processing which provides two levels of integration and FFT processing with as many as 30 measured parameters
  • Provides ability to schedule automated data collection from any number of 1444 series or 1440 series monitors or machines
  • Includes module configuration managed by a ControlLogix® controller and the Studio 5000™ Logix Designer application
  • Module I/O and configuration tables are exposed as common tags in the Studio 5000 Logix Designer application
  • Includes fault frequency identification
  • Includes one virtual relay
  • Offers built-in and user editable rule sets
  • Includes two tachometer inputs, each measures 25V (50V max. peak to peak)
  • Offers signal processing which provides synchronous or asynchronous measurements
  • Provides ability to monitor shaft, casing, or pedestal vibration in rotating equipment
  • Communicates via ControlNet™ network (connected through a 1440-ACNR ControlNet Adapter)
  • Supports maximum of 10 1440-DYN02-01RJ Dynamic Measurement Modules on a ControlNet™ network
  • Includes four virtual relays or four additional relays (when connected to an XM® 441 Expansion Relay Module)
  • Includes two channels which connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Includes two channels connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Includes the ability to download defect frequencies to collectors
