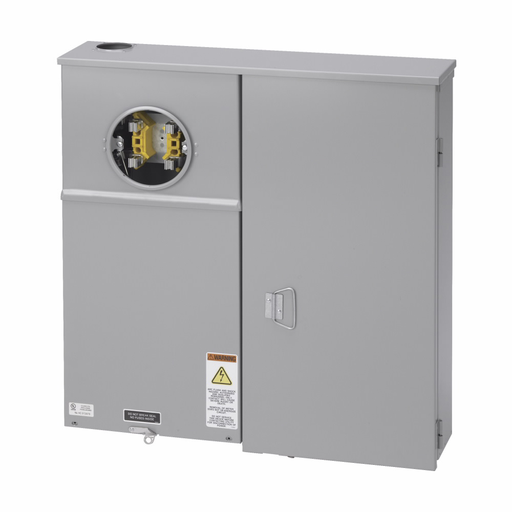

Product image for B-Line U214-MTBL Meter Breaker, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 022 kAIC, #6-250 MCM, MCB, Steel, Side, 5 jaws, 3 poles, 1?/3W, Overhead feed
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

B-Line U214-MTBL Meter Breaker, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 022 kAIC, #6-250 MCM, MCB, Steel, Side, 5 jaws, 3 poles, 1?/3W, Overhead feed

Manufacturer: Eaton B-Line | Catalog # U214MTBL | Codale Part # 367582
$3,303.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Eaton B-Line series meter breakers, 100 A, Test block, Ring type, 3R, ANSI 61 gray painted, 022 kAIC, #6-250 MCM, MCB, Steel, Side, 5 jaws, 3 poles, 1../3W, Overhead feed

Technical Information

Amperage
100 Amp
Applications
METER MAIN LOAD CENTER,TEST BLOCK BYPASS,Underground, Overhead, Watthour Meters
Cable Entry
Knockout
Enclosure
NEMA 3R
Interrupt Rating
10 kAIC
Material
Steel
Mounting Type
Surface
Number of Phases
1 Phase
Size
20 In Width X 4-5/8 In Depth X 24 In Height
Standard
UL 67
Type
Self Contained, Ring, Test Block Bypass
Voltage
120/240 Volt

Manufacturer Information

Brand
B-Line
Sub Brand
Metering

General Product Info

12-Digit UPC
782051701265
Product UPC
78205170126
Weight
37 lb

Dimensions

Height
24 Inch
Length
4-5/8 Inch
