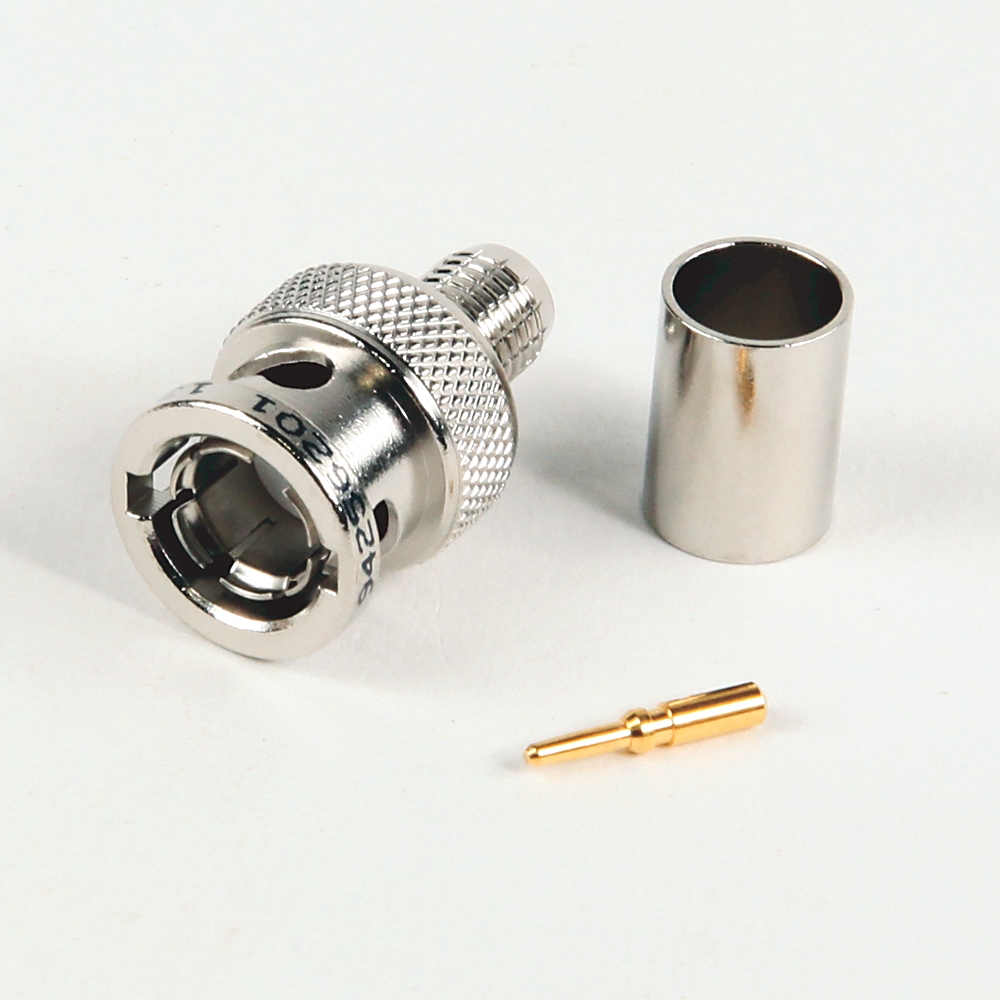

Allen-Bradley 1786-BNC Controlnet Media Connector

Manufacturer: Allen Bradley / Rockwell | Catalog # 1786-BNC | Codale Part # 367752
$20.50/ea
ea
Log in or register to view your price, purchase history, and more!
71 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ControlNet Media Coaxial BNC Connector

Technical Information

Connection Type
BNC
Enclosure
IP20
Impedance
75 ?
Standard
GOST,KC,MARINE
Tc Connection
BNC
Temperature Rating
-20 to 80 degrees C
Type
Coaxial Media Connector

Manufacturer Information

Brand
Rockwell Automation
Sub Brand
ControlNet

General Product Info

12-Digit UPC
612598164912
Product UPC
61259816491
Used With
ControlNet Media System
Weight
0.0300 lb
Features
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Links a ControlNet™ network to a single H1 segment
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Self-contained, panel, or DIN-rail mountable device
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Supports multiple levels of device and media redundancy
  • Includes 200 micron cable
  • Supports ControlNet Media redundancy
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Displays useful field bus diagnostic information via status LEDs
  • Use with the 1786-RPFS repeater
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Links an EtherNet/IP™ network to a single H1 segment
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Supports as many as 24 PA field devices
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Supports EtherNet/IP Media redundancy
  • Supports Master Device redundancy
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Provides all basic diagnostic information in the input assembly
