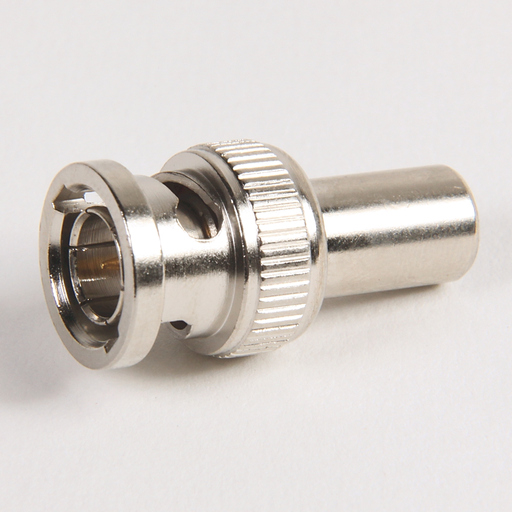

Allen-Bradley 1786-XT Controlnet Media Connector

Manufacturer: Allen Bradley / Rockwell | Catalog # 1786-XT | Codale Part # 367753
$21.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ControlNet Media BNC Terminator

Technical Information

Connection Type
BNC
Enclosure
IP20
Impedance
75 ?
Standard
GOST,KC,MARINE
Tc Connection
oaxial/BNC/75 Ohm
Temperature Rating
-20 to 80 degrees C
Type
NC Terminator

Manufacturer Information

Brand
Rockwell Automation
Sub Brand
ControlNet

General Product Info

12-Digit UPC
612598164943
Product UPC
61259816494
Used With
ControlNet Media System
Weight
0.0300 lb
Features
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Links an EtherNet/IP™ network to a single H1 segment
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Links a ControlNet™ network to a single H1 segment
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Supports as many as 24 PA field devices
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Provides all basic diagnostic information in the input assembly
  • Self-contained, panel, or DIN-rail mountable device
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Supports multiple levels of device and media redundancy
  • Displays useful field bus diagnostic information via status LEDs
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Supports ControlNet Media redundancy
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Supports Master Device redundancy
  • Includes 200 micron cable
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Use with the 1786-RPFS repeater
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Supports EtherNet/IP Media redundancy
