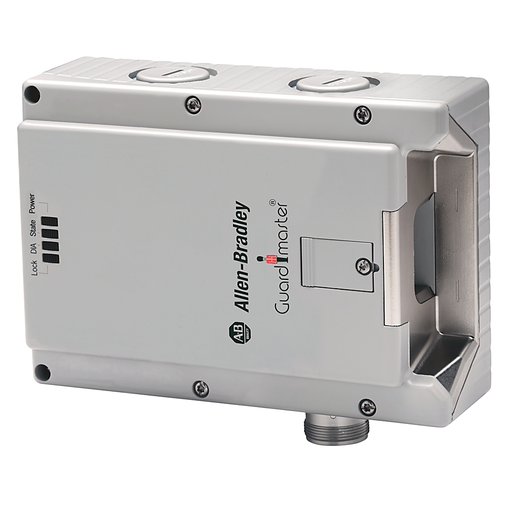

Product image for A-B 442G-MABL-URM-C00 Lock Module P
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

A-B 442G-MABL-URM-C00 Lock Module P

Manufacturer: Allen Bradley / Rockwell | Catalog # 442G-MABL-URM-C00 | Codale Part # 3690562
$1,161.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Lock Module PTL M23 Right

Technical Information

Amperage
200 mA
Conductor Size
26 AWG
Connection Type
M23 19-Pin Cable
Contact Configuration
2 x PNP, 200mA max.
Material
Plastic
Standard
CCC,CE,CUL,KC,RCM,UL
Tc Connection
M23 19-pin Connector
Temperature Rating
-20 degrees C to 55 degrees C
Type
Right-Hand Guard Door, Power to Lock
Voltage
24 Volt
Wattage
250 mW
Wire Size
26 AWG

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Guardmaster®

General Product Info

12-Digit UPC
887172684623
Product UPC
88717268462
Used With
Guardmaster 442G Multifunctional Access Box
Weight
2.2200 lb
Features
  • Includes a CIP Safety over EtherNet/IP version which enables easy integration in a networked automation control system using Studio 5000 Logix Designer® environment
  • Includes a high coded RFID bolt actuator to achieve the highest level of tamper resistance in accordance with ISO 14119
  • Offers the ability to be wired in a series and maintain a PLe Cat 4 rating for interlocking, guard lock monitoring and control of guard locking
