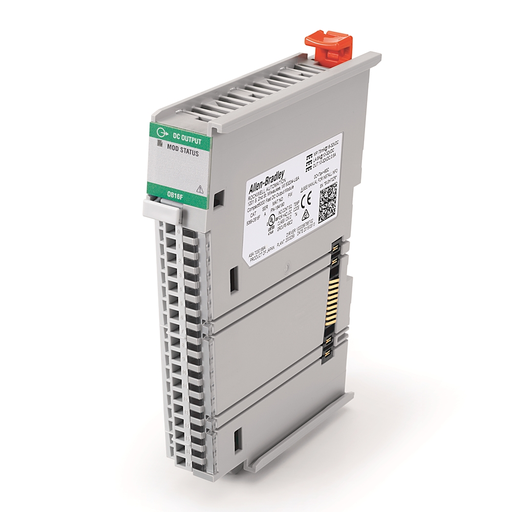

Product image for Allen Bradley 5069-OB16F Fast DC Output Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 5069-OB16F Fast DC Output Module

Manufacturer: Allen Bradley / Rockwell | Catalog # 5069-OB16F | Codale Part # 3697733
$901.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Compact 5000 Fast DC Output Module

Technical Information

Amperage
0.5 Amp per Channel, 8 Amp per Module
Number of Channels
16 Channel
Output
16
Power Consumption
3.25 W
Standard
CCC,CE,CUL,KC,MARINE,RCM,UL
Temperature Rating
0 - 60 degrees C
Type
Output Module
Voltage
12/24 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
CompactLogix

General Product Info

12-Digit UPC
885630530086
Environmental Conditions
-40 to 85 C Temperature, 5 - 95% Non-Condensing Relative Humidity, 4.6 g at 10 - 500 Hz Vibration, 30 g Shock
Product UPC
88563053008
Used With
CompactLogix/Compact GuardLogix 5069 Controllers
Weight
0.5300 lb
Features
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Support up to 31 I/O modules per controller or adapter
  • Support up to 31 I/O modules
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Provide faster safety reaction time
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Provide high-speed backplane communications for faster transfer rates
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Provide enhanced diagnostics information
  • Use the slim 5069-AENTR for small space requirements
  • Provide improved status indicators to monitor and troubleshoot systems
  • Rated up to SIL3/PLe
