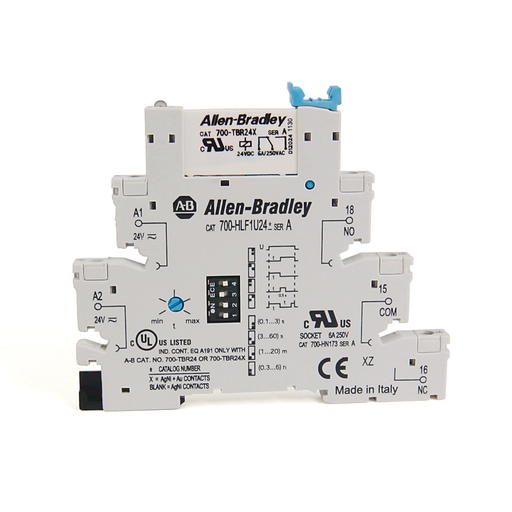

Allen Bradley 700-HLF1U24X 24V ACDC Gold TRM Block Timing Relay

Manufacturer: Allen Bradley / Rockwell | Catalog # 700-HLF1U24X | Codale Part # 3714680
$81.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
24V ACDC Gold TRM Block Timing Relay

Technical Information

Coil Voltage
24 V
Contact Configuration
SPDT - 1 CO
Contact Material
Gold Plated
Contact Rating
6 A
Dielectric Strength
1000 V Pole to Pole, 4000 V Contact to Coil
Operating Cycles
10000000 Mechanical, 100000 Electrical
Power Rating
0.5 VA
Standard
CCC,CE,CUL,KC,UL
Temperature Rating
-40 to 55 degrees C
Type
General Purpose, Electro-Mechanical

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
700

General Product Info

12-Digit UPC
612598437146
Environmental Conditions
-40 to 100 C Storage
Product UPC
61259843714
Weight
0.0800 lb
Features
  • Offers timing range from 0.1 sec...6 hr
  • Offers externally replaceable relay modules
  • Offers leakage current suppression version
  • Includes externally replaceable relay modules
  • Includes standard status indicator, reverse polarity protection and surge protection
  • Includes screw-type and spring-clamp terminal bases
  • Provides standard status indicator, reverse polarity protection, and surge protection
  • Includes built-in retainer clip and snap-in marker lever
  • Includes relay and socket assembled interface modules for high density interposing or isolation applications
  • Includes SPDT (relay)
  • Provides built-in retainer clip and snap-in marker lever
  • Provides four timing functions
  • Includes screw terminal bases
