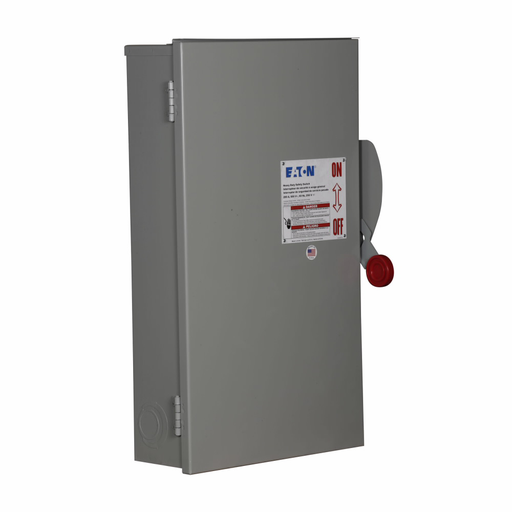

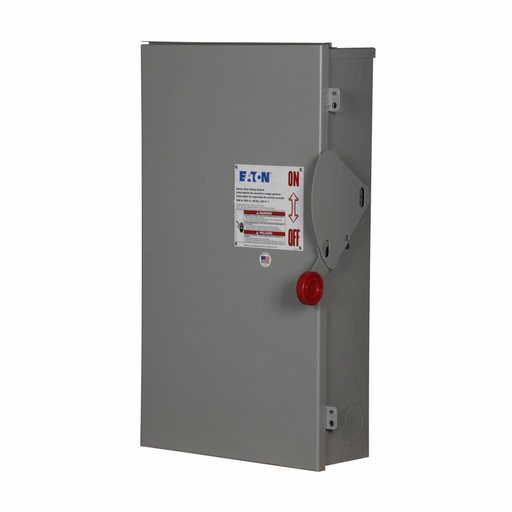

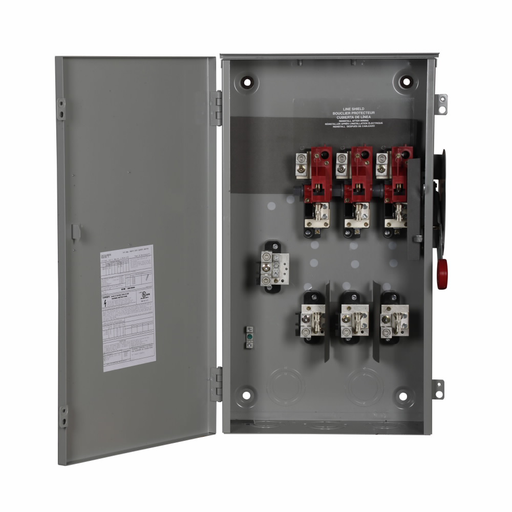

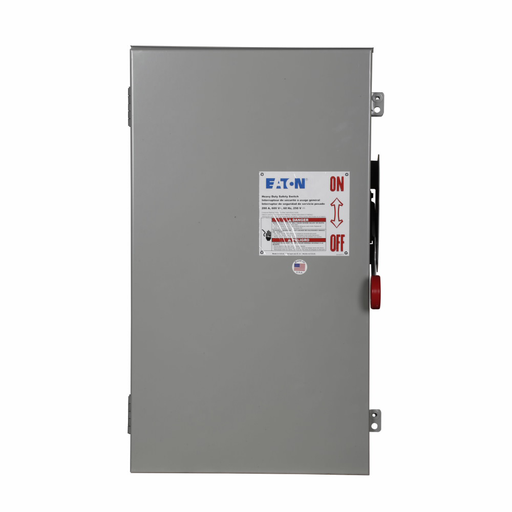

Eaton DH364NRK Heavy Duty Safety Switch

Manufacturer: Eaton Cutler-Hammer | Catalog # DH364NRK | Codale Part # 381377
$1,592.80/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Eaton Enhanced visible blade single-throw safety switch, 200 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 50, 50/ 125, 150 hp (1/3PH @480, 600 V), #6-250 kcmil Cu/Al

Technical Information

Amperage
200 Amp
Applications
Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Enclosure
3R
Enclosure Material
Steel
Material
Steel
NEMA Size
3R
Number of Poles
3 Pole
Number of Wires
4 Wire
Type
Heavy Duty Fusible Safety Switch
Voltage
600 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113206837
Product UPC
78211320683
Weight
52 lb

Dimensions

Height
9-1/2 Inch
Length
30 Inch
