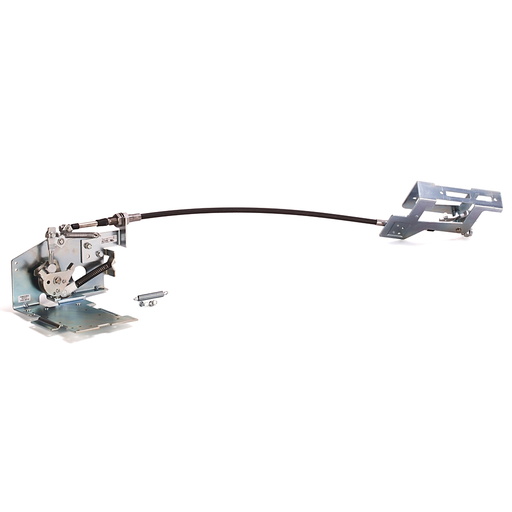

Product image for A-B 1494C-DH644-A5 400 A Flange Mtd
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

A-B 1494C-DH644-A5 400 A Flange Mtd

Manufacturer: Allen Bradley / Rockwell | Catalog # 1494C-DH644-A5 | Codale Part # 3820321
$4,479.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
400 A Flange Mtd Cable Switch

Technical Information

Amperage
400 Amp
Cable Size
5 ft Cable Mechanism
Conductor Size
1/0 AWG-250 kcmil/4 AWG-500 kcmil
Connection Type
3/8-24 Screw Lug Terminal
Fuse Type
Class H
Load Rating
75 hp at 200 - 208 V, 125 hp at 230 V, 250 hp at 460 V, 350 hp at 575 V, 90 kW at 220 - 240 V, 185 kW at 380 - 440 V, 257 kW at 500 - 600 V
Mounting Type
Flange
Number of Poles
3 Pole
Operating Cycles
10000
Temperature Rating
-35 to 40 degrees C
Type
Fusible, Right Handed
Voltage
600 Volt
Wire Size
1/0 AWG-250 MCM, 4 AWG-500 MCM

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
662074965236
Environmental Conditions
90% Relative Humidity at 20 C, 50% Relative Humidity at 40 C
Housing Material
Phenolic
Product UPC
66207496523
Weight
91.2710 lb
Features
  • Accommodates Types 1, 3R, 4, 4X, and 12 enclosures
  • Provides precise alignment of the switch with respect to the handle is not required
  • Accommodates Class E, H, J, and R fuses
  • Available with 3, 4, 5, 6, and 10 ft cable lengths
  • Includes 200600 A ratings
  • Offers complete kits with accessories
  • Offers field-installed accessories
  • Includes lockable handle
  • Includes fully-exposed switch blades
Certifications
  • cULus Listed File No. E47426; Guide Nos. WHTY, WHTY7
Standards Compliance
  • UL 98
  • CSA C22.2 No. 4
