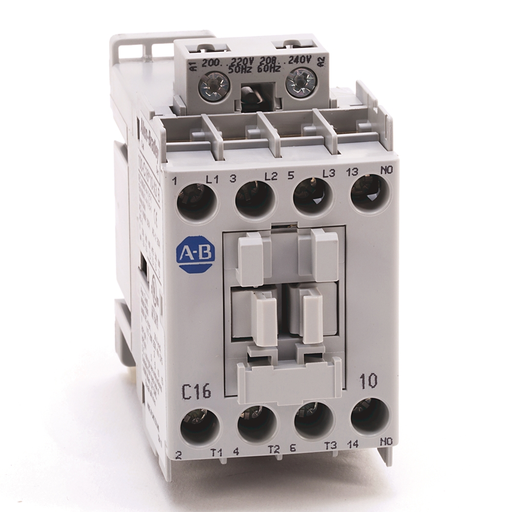

A-B 100-C16L01 IEC 16 A Contactor

Manufacturer: Allen Bradley / Rockwell | Catalog # 100-C16L01 | Codale Part # 3827011
$225.10/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
IEC 16 A Contactor

Technical Information

Amperage
16 Amp
Coil Voltage
200 - 220 VAC at 50 Hz, 208 - 240 VAC at 60 Hz
Conductor Size
16-10 AWG
Connection Type
Screw-Type Terminals
Contact Configuration
1 NC Auxiliary
Current
16 Amp
Mounting Type
Panel or 35 mm DIN Rail
Number of Poles
3 Pole
Power Rating
5.5 kW at 230 V, 7.5 kW at 400/415 V, 500 V and 690 V
Standard
C-TICK,CCC,CE,CSA,CUL,GOST,KC,UL
Temperature Rating
-25 to 60 degrees C
Terminal Type
Screw Terminals
Type
Contactor
Voltage
115-690 VAC, 24-440 VDC

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
IEC

General Product Info

12-Digit UPC
662072600085
Environmental Conditions
-55 to 80 deg C Storage Temperature, IEC 60068-2-1/-2/-30 Climatic Withstand, 2000 m Maximum Altitude of Installation Site
Product UPC
66207260008
Weight
0.8600 lb
Features
  • Includes space-saving coil-mounted control modules
  • Meets IEC, UL, and CSA standards requirements
  • Offers common accessories for all contactor sizes
  • Includes built-in surge suppression with DC coils
  • Includes reversible coil terminations (line or load side)
  • Provides IP2X finger protection
  • Provides reversible coil terminations (line or load side)
  • Provides front and side mounting of auxiliary contacts
  • RoHs compliant
  • Includes electronic and pneumatic timing modules
